• Leather-trimmed shift lever with sequential mode
• Sun visors with illuminated vanity mirrors
• Electric Parking Brake (EPB) with Brake Hold
• Dual zone automatic climate control system with dust and pollen filter and rear-seat vents
• Remote keyless entry system with lock, unlock, panic functions and remote illuminated entry
• Smart Key System on front doors and liftgate with Push Button Start, remote keyless entry system with lock, unlock and panic functions, power liftgate and remote illuminated entry

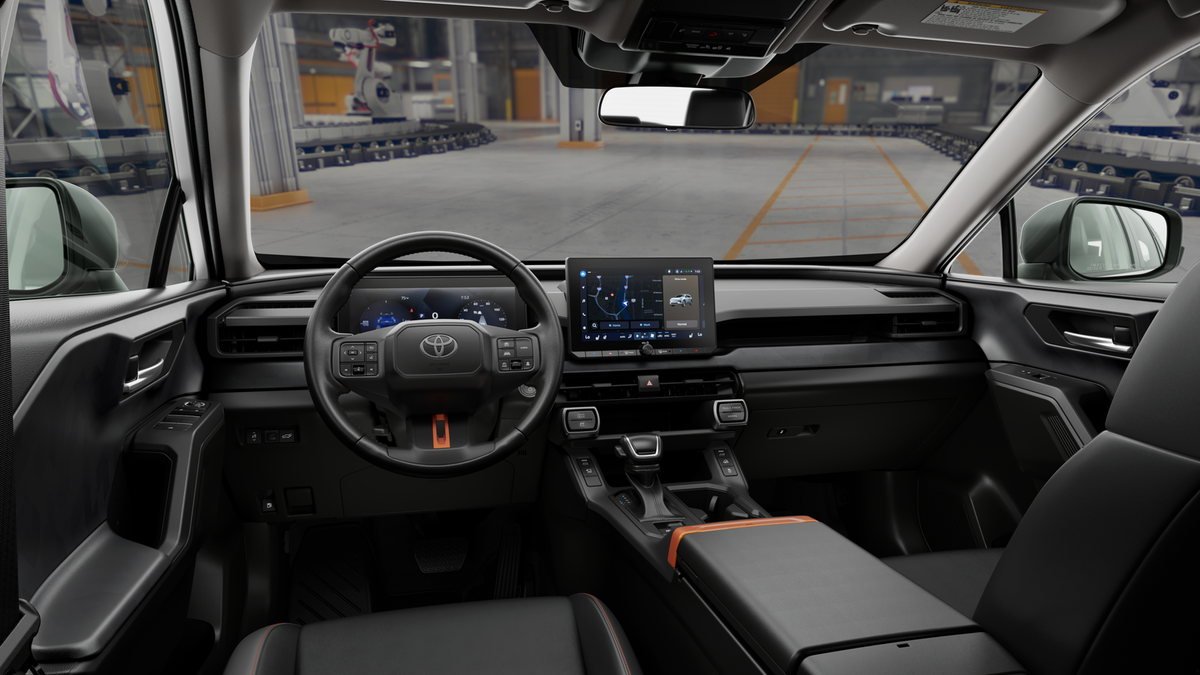

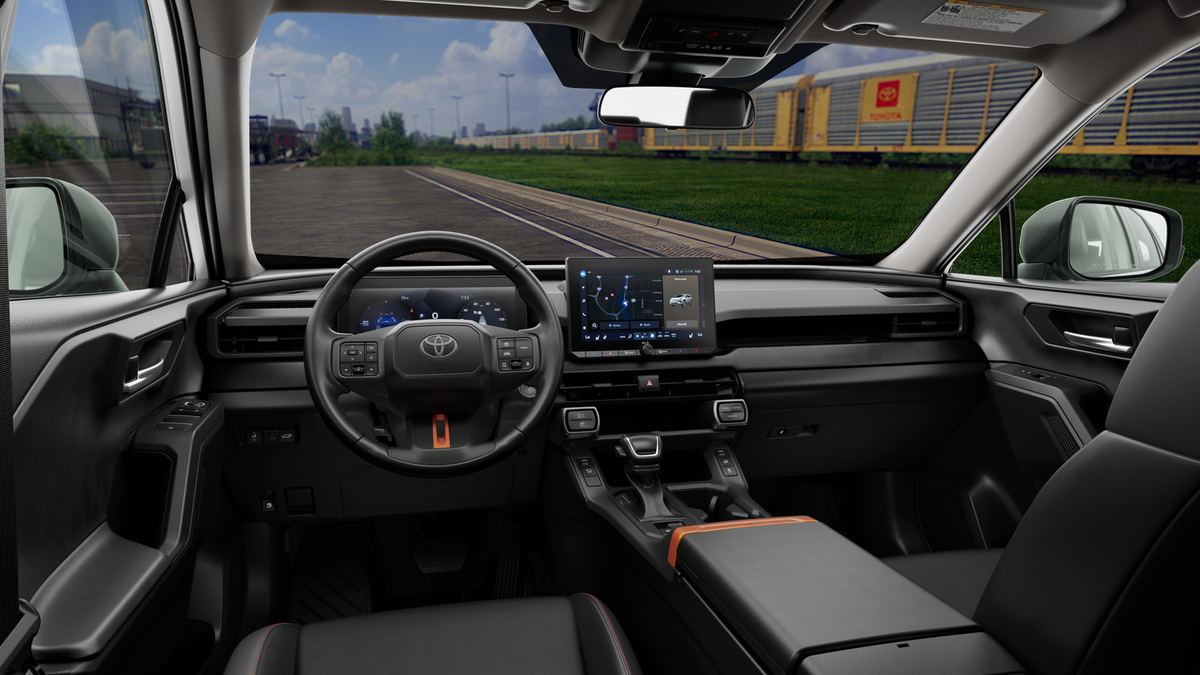

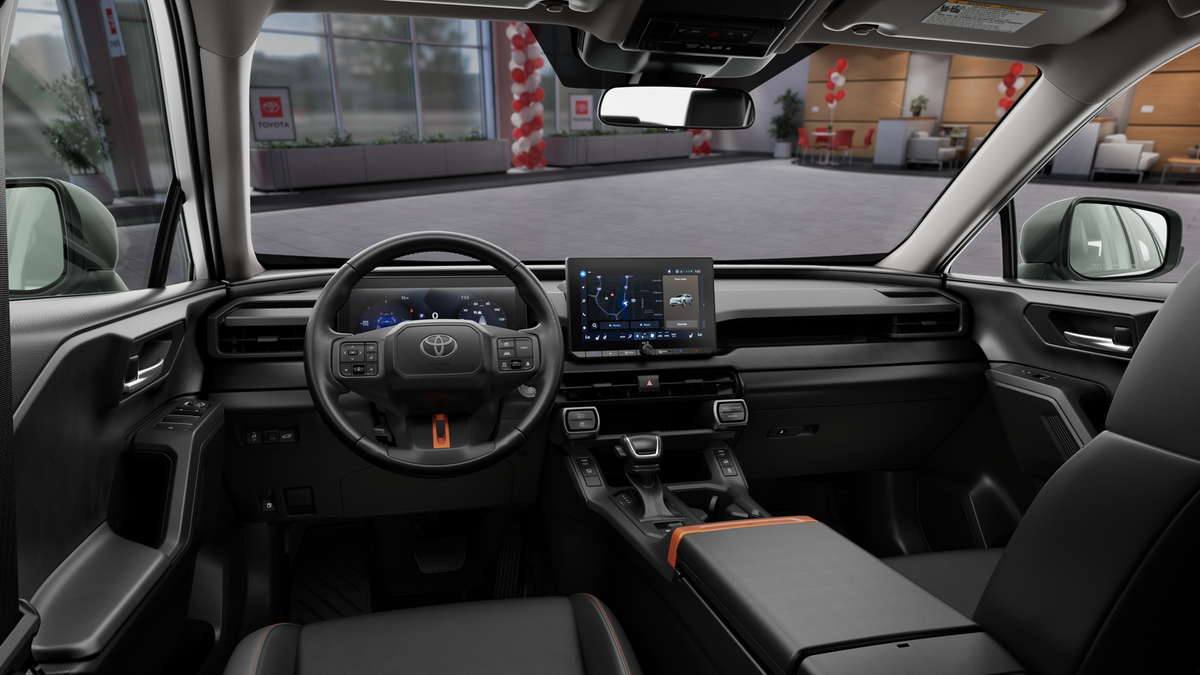

• 12.3-in. digital gauge cluster with customizable settings, integrated multimedia information, odometer, tripmeters, clock, outside temperature, rear passenger seatbelt indicators, fuel gauge, hybrid energy monitor, battery charge meter, fuel economy information, trip timer, shift-position and scheduled maintenance indicators, and warning messages
• Heated leather-trimmed tilt/telescopic 3-spoke steering wheel with silver accent and controls for audio, Multi-Information Display (MID, Bluetooth®® hands-free phone, voice-command, Dynamic Radar Cruise Control (DRCC), Lane Departure Alert (LDA), and Lane Trace Assist (LTA)
• Turn signal stalk with headlight controls and one-touch 3-blink lane change turn signals
• Center console with covered storage compartment, reversible armrest/console tray, two cup holders, drive mode (Trail, Snow, Normal and EV mode ), auto LSD/VSC, Electric Parking Brake (EPB) and automatic Brake Hold controls, and front storage tray
• Dual-purpose storage door hand holds
• Removeable front cupholder divider
• Passenger-side lockable glove compartment
• Two front and two rear cup holders; two front and two rear bottle holders
• Front-door storage pockets with bottle holders
• LED front-seat reading lights, dome light and cargo area light
• White ambient illumination for in-dash shelves
• White ambient illuminated foot wells
• White ambient illumination for front cup holders
• Cargo area light

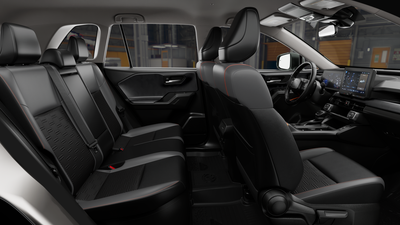

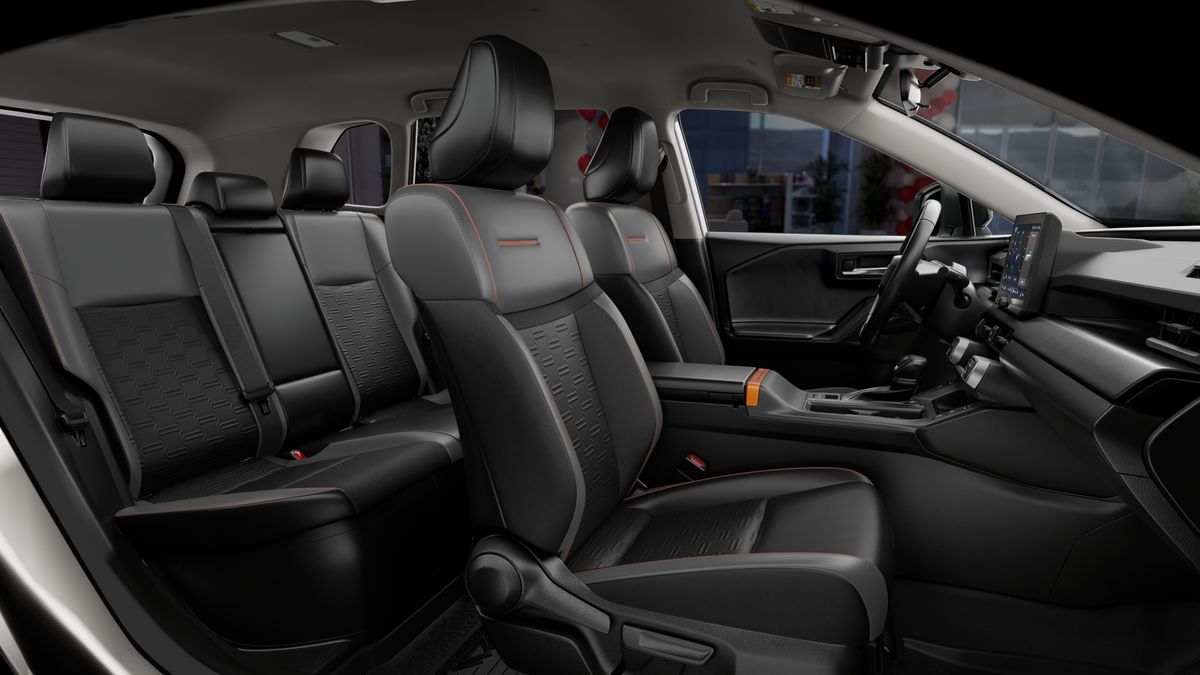

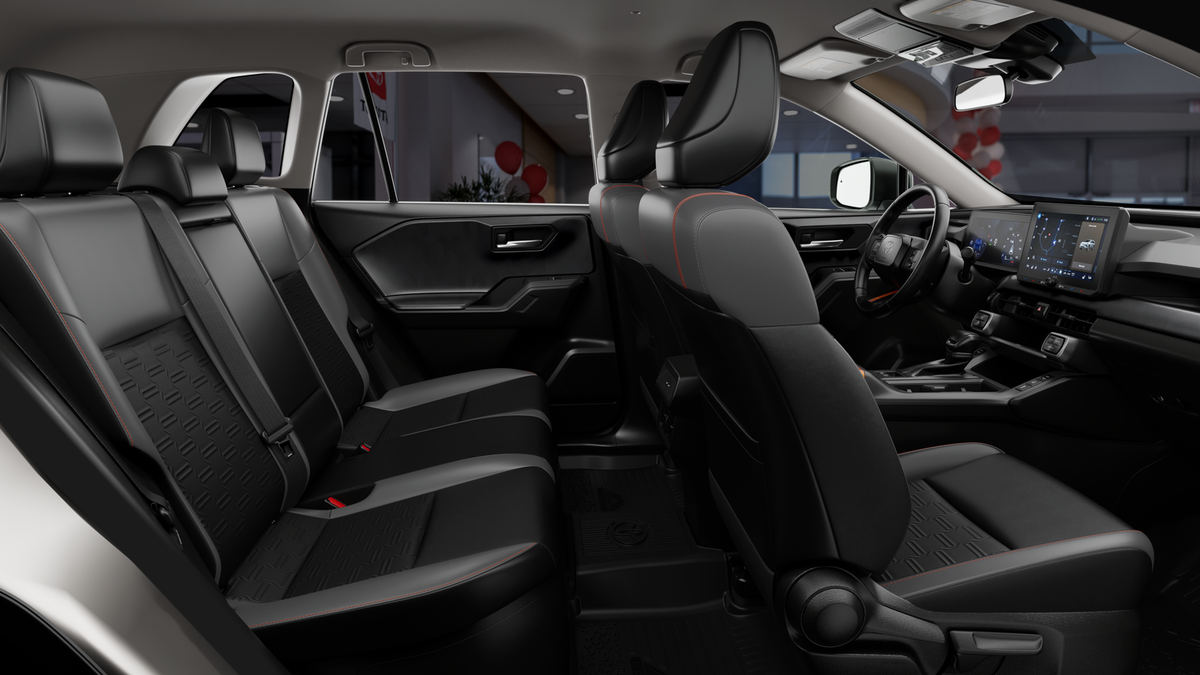

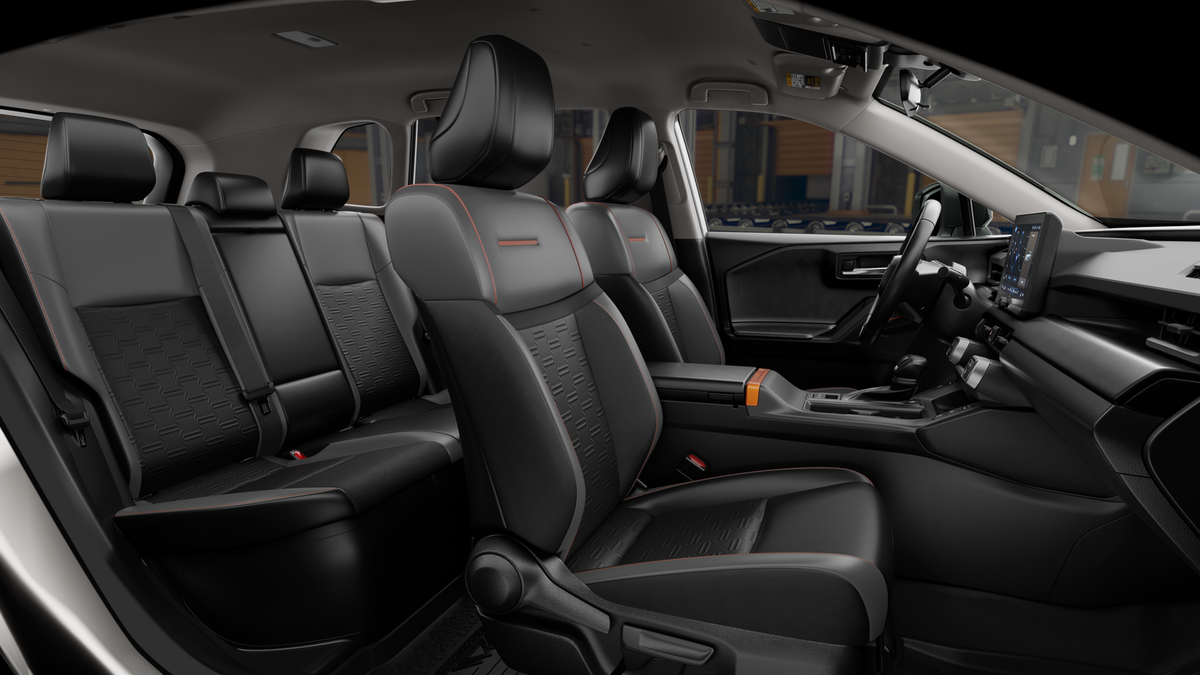

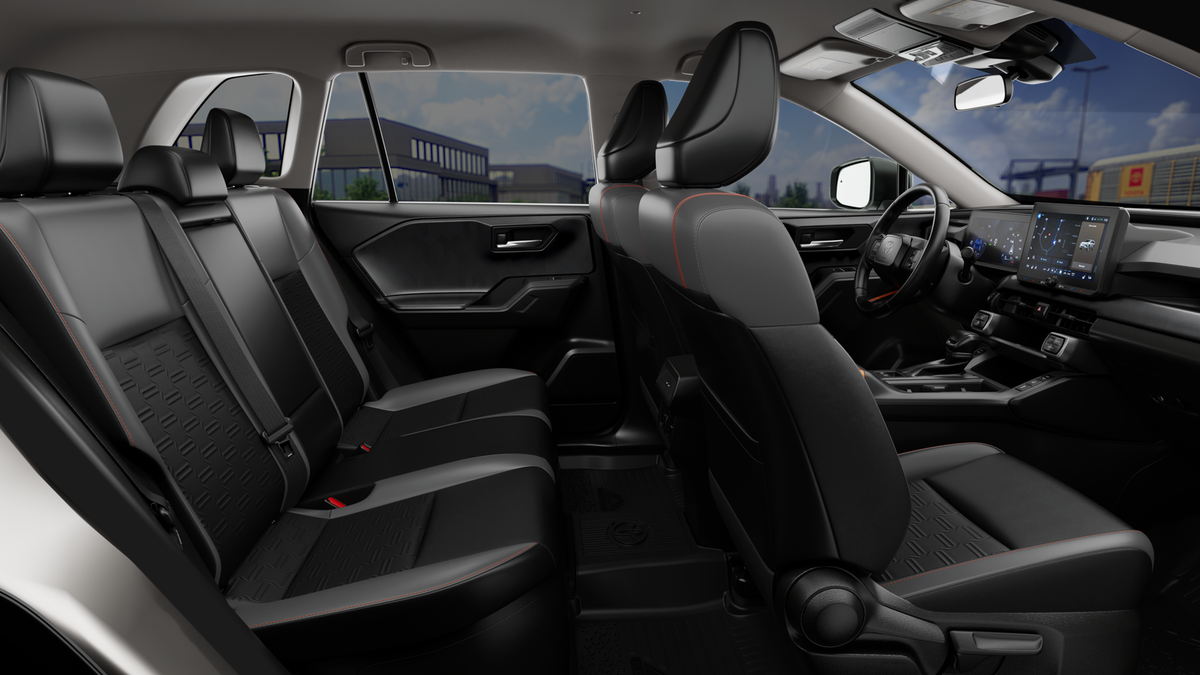

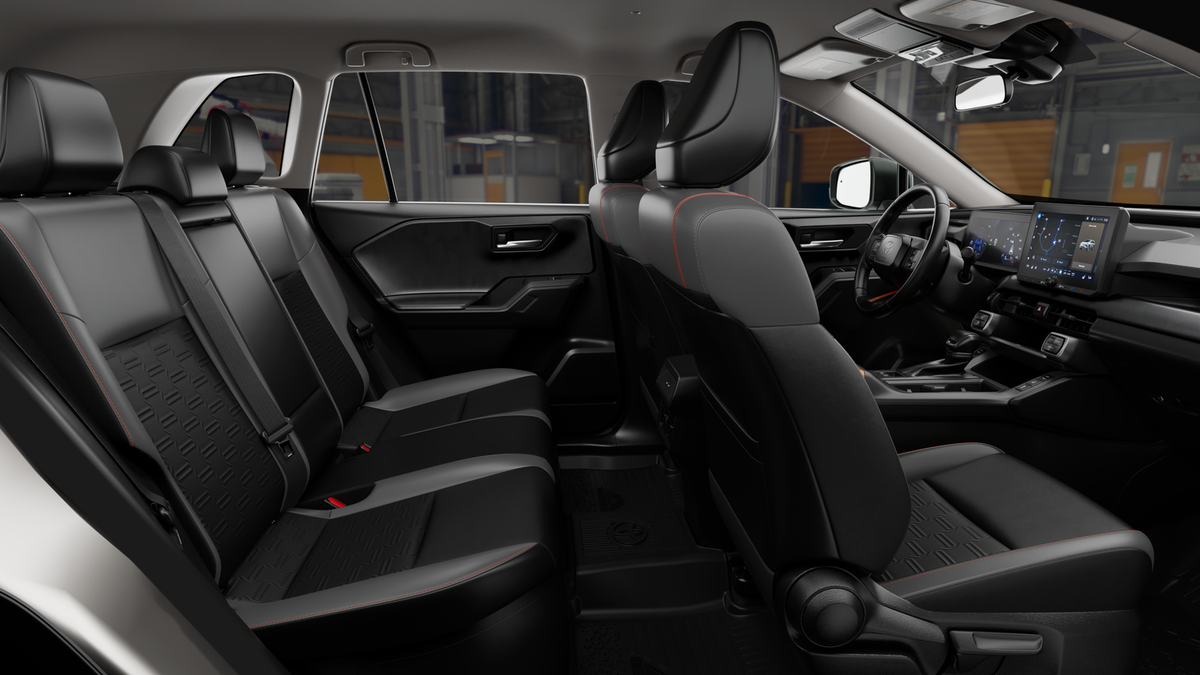

• SofTex®-trimmed seats, heated front seats (high-low); 8-way power-adjustable driver's seat with lumbar support; 6-way manual front passenger seat with seatback pocket
• Overhead console with maplights, sunglasses storage and Safety Connect® button

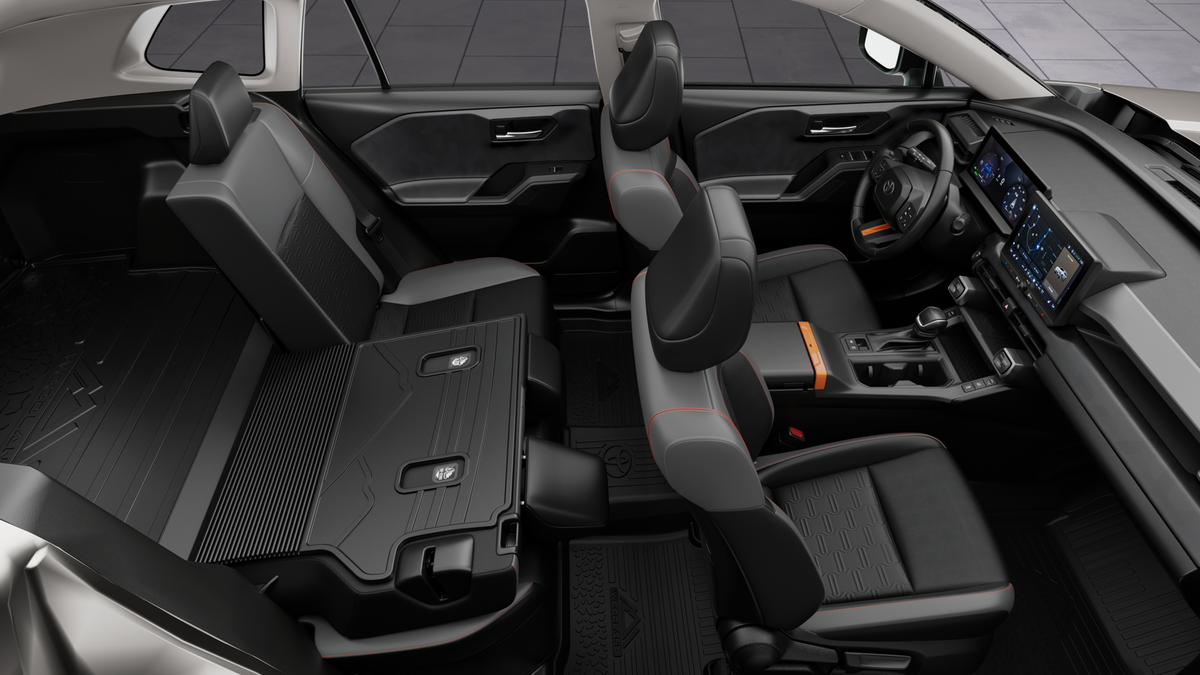

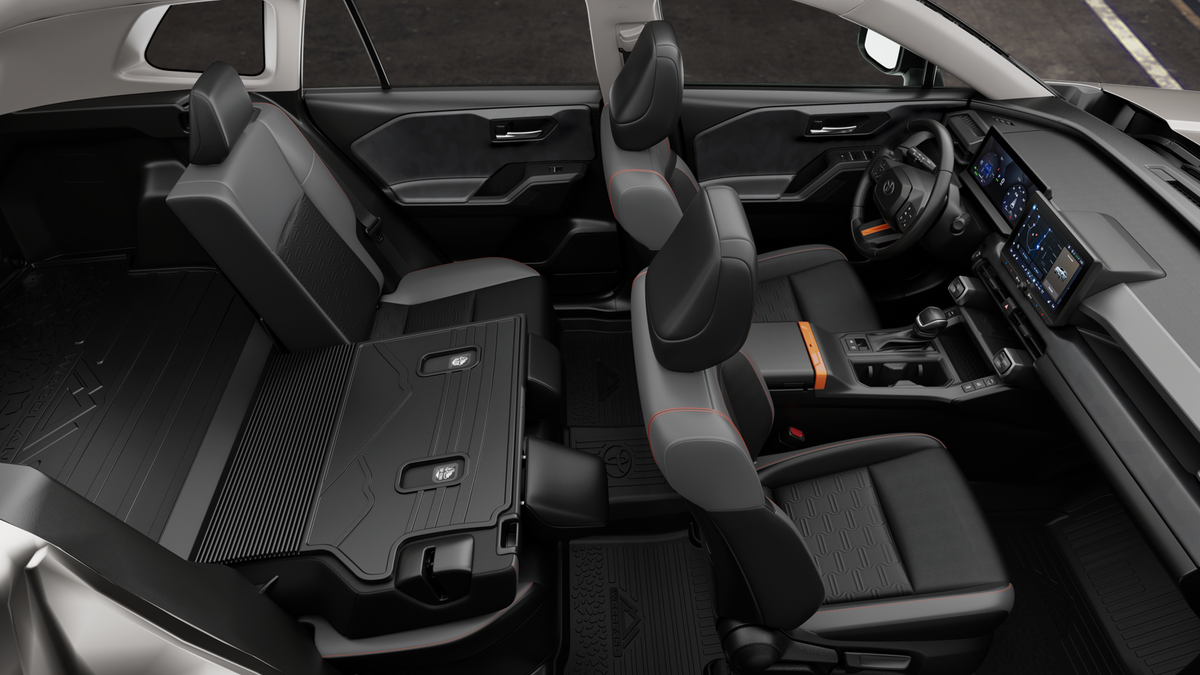

• 60/40 split reclining fold-flat rear seat with center armrest and cup holders
• Silver interior door handles
• Cargo area tonneau cover
• Height-adjustable rear cargo area deck board
• Woodland all-weather floor mats and cargo liner
• Black carpet flooring with driver-side footrest
• Day/night rearview mirror
• Chrome-painted dash with soft-touch dash panels and leather-wrapped armrests
• Black anti-slip in-dash storage trays
• Uniquely patterned perforated soft-touch door and dash panels with interior red orange accents
• One 12V/120W auxiliary power outlet in front instrument panel storage tray
• One 120V/1500W AC power outlet in cargo area
• Two 45w front USB-C, two 15w rear USB-C charging ports and one center console media USB-C charging port
• Single Qi-compatible wireless charging with charge indicator light
• Power windows with auto up/down and jam protection in all positions
• Power door locks with shift-linked automatic lock/unlock feature
• Rear liftgate window defogger
• 10.5-in. Toyota Audio Multimedia, six speakers, with wireless Apple CarPlay® & Android Auto™ compatibility, SiriusXM® with 360L 3-month trial subscription. See toyota.com/connected-services for details.

• Capability: Hill Start Assist Control (HAC)
• Steering: Electric Power Steering (EPS); power-assisted rack-and-pinion
• Drivetrain: All-Wheel Drive Integrated Management (AIM) with Multi-Information Display (MID) monitor
• Drivetrain: All-Wheel Drive (AWD)
• Suspension: Independent MacPherson strut front suspension with stabilizer bar; multi-link rear suspension with stabilizer bar
• Tow Prep Equipment: Automatic CVT fluid warmer
• HV Electric Motor: Max. Torque: 170 lb.-ft. (231 N•m)
• HV Electric Motor: Power output (front/rear): 100/40 kW
• HV Traction Battery: Type: Sealed Lithium-ion (Li-ion)
• HV Traction Battery: Rated voltage: 248V (Li-ion)
• Drive Modes: Drive mode button with SPORT, Eco and NORMAL modes
• Brakes: Electronically Controlled Braking (ECB) system with integrated regenerative braking
• Brakes: Active Cornering Assist (ACA)

• Front and Rear Parking Assist with Automatic Braking (PA w/AB)
• Downhill Assist Control (DAC)
• Blind Spot Monitor (BSM) with Rear Cross-Traffic Alert (RCTA)
• Vehicle Proximity Notification System (VPNS)
• Trailer-Sway Control (TSC)
• Hill Start Assist Control (HAC)
• 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
• Front and outboard second-row seatbelts with seatbelt pretensioners with force limiters
• LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on outboard rear seats and tether anchors on all rear seats
• Adjustable front shoulder anchors
• Toyota Safety Sense™ 4.0 (TSS 4.0) — Pre-Collision System w/Pedestrian Detection (PCS w/PD), Lane Tracing Assist (LTA), Full-Speed Range Dynamic Radar Cruise Control (DRCC), Lane Departure Alert w/Steering Assist (LDA w/SA), Automatic High Beams (AHB), Road Sign Assist (RSA), Proactive Drive Assist (PDA)
• Eight airbags — includes driver and front passenger Advanced Airbag System, driver and front passenger seat-mounted side airbags, driver's knee airbag, front passenger seat cushion airbag, and front and rear side curtain airbags
• Tire Pressure Monitor System (TPMS) with direct pressure readout and individual tire location alert
• Backup camera with dynamic gridlines
• Multi-Terrain Monitor (MTM) with selectable front, side or rear views
• Front and rear side-impact door beams
• Star Safety System™ — includes Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Brake System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart Stop Technology® (SST)
• Child-protector rear door locks and power window lockout control

Body Side Moldings ($260)

• Body Side Moldings help protect against careless door swings
• runaway shopping carts and other parking lot mishaps while adding a little extra exterior style.
  •Color-matched to the exterior paint color

Door Edge Guards ($165)

• Door Edge Guards help prevent door edge dings and chipped paint with this protective finishing touch.
  •Thermoplastic-coated stainless steel is precisely color matched to the exterior paint

Door Sill Protectors ($199)

• Door sill protectors help guard against interior door scuffs
• scrapes and scratches.
  • Aluminum finish adds durability and style
  •Features a Toyota logo for a customized look

50 State Emissions ($0)

• 50 State Emissions

• BODY SIDE MOLDINGS (TMS)

  DOOR EDGE GUARDS (TMS)

  DOOR SILL PROTECTORS (TMS)

  50 STATE EMISSIONS

• Vehicle
• EPA Classification: Small SUV 4WD
• Mileage
• Fuel Economy Est-Combined (MPG): 42 (Est)
• EPA Fuel Economy Est - City (MPG): 44 (Est)
• EPA Fuel Economy Est - Hwy (MPG): 39 (Est)
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 550
• Weight Information
• Base Curb Weight (lbs): 3920
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 350
• Maximum Trailering Capacity (lbs): 3500
• Suspension
• Suspension Type - Front: Strut
• Suspension Type - Rear: Double Wishbone
• Suspension Type - Front (Cont.): Strut
• Suspension Type - Rear (Cont.): Double Wishbone
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12
• Rear Brake Rotor Diam x Thickness (in): 11.1
• Tires
• Front Tire Size: P235/60HR18
• Rear Tire Size: P235/60HR18
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 18 X 7.5
• Rear Wheel Size (in): 18 X 7.5
• Spare Wheel Size (in): Compact
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 36.9
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 14.5
• Exterior Dimensions
• Wheelbase (in): 105.9
• Length, Overall (in): 181
• Width, Max w/o mirrors (in): 73
• Height, Overall (in): 67
• Min Ground Clearance (in): 8.1
• Cargo Area Dimensions
• Cargo Volume to Seat 1 (ft³): 70.4
• Cargo Volume to Seat 2 (ft³): 37.8
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 98.9
• Front Head Room (in): 37.9
• Front Leg Room (in): 41
• Front Shoulder Room (in): 57
• Front Hip Room (in): 55.3
• Second Head Room (in): 39.5
• Second Leg Room (in): 37.8
• Second Shoulder Room (in): 56.4
• Second Hip Room (in): 49.6
• Summary

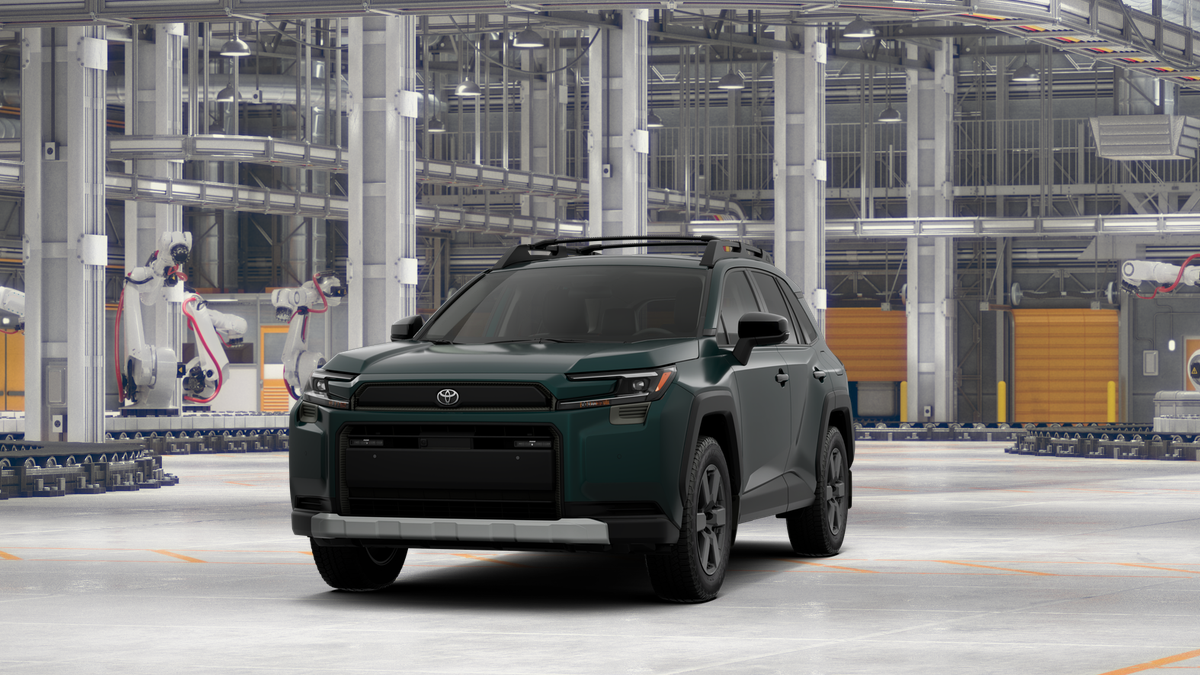

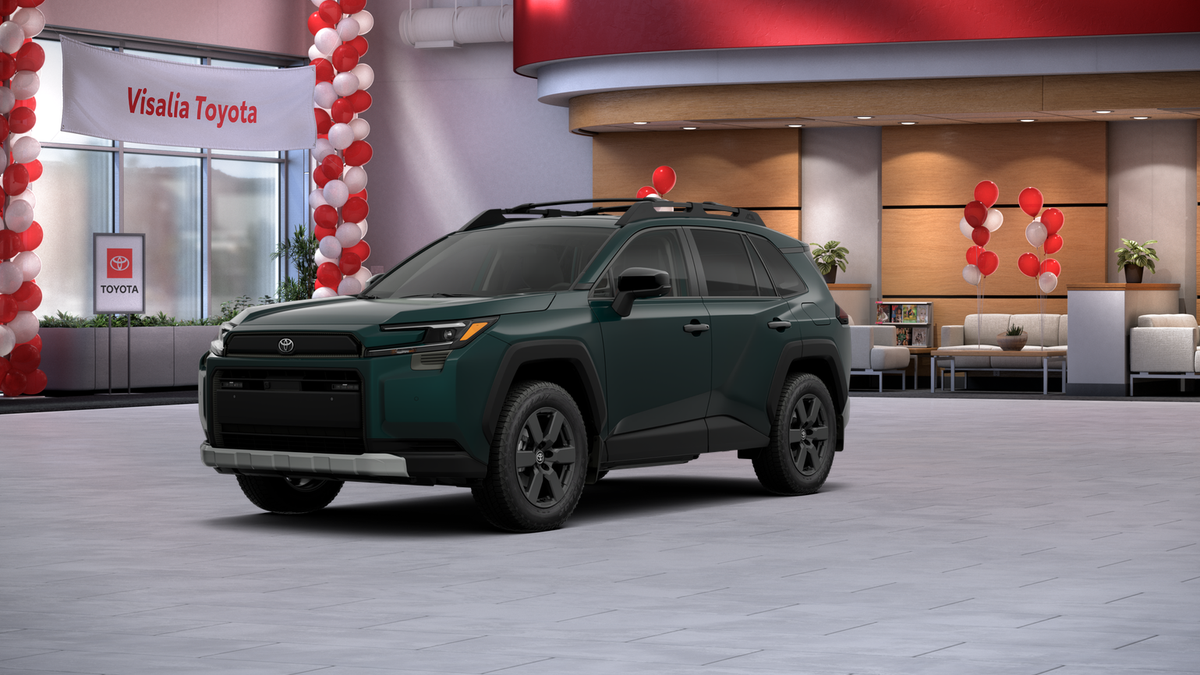

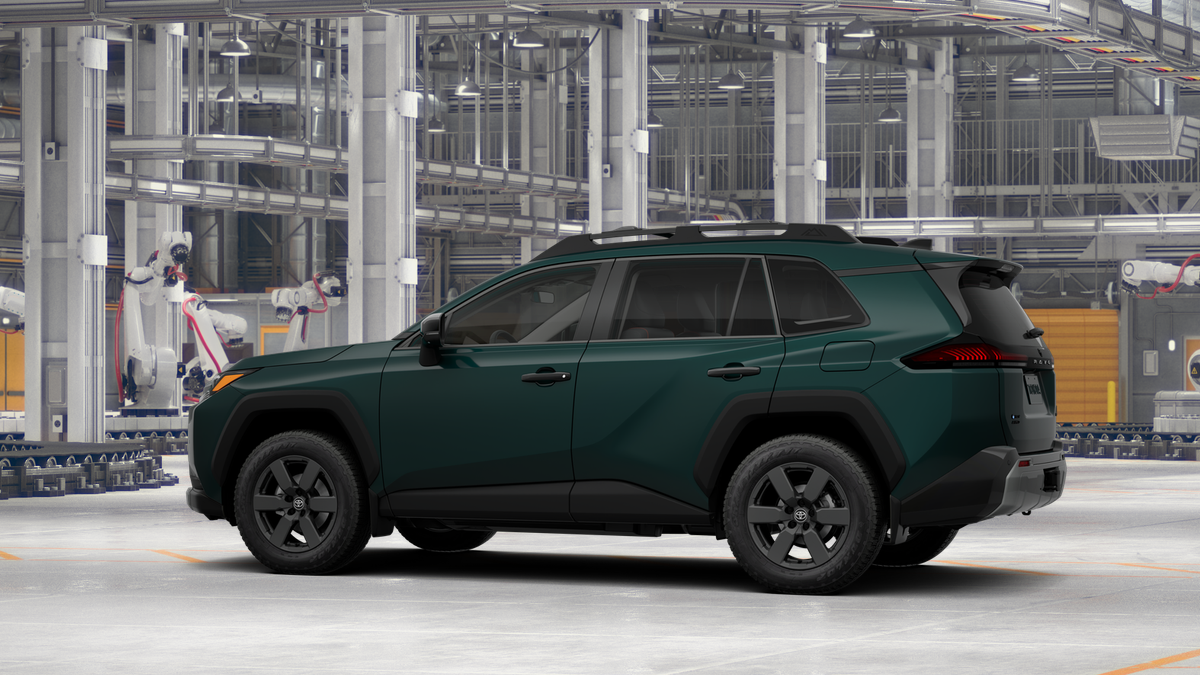

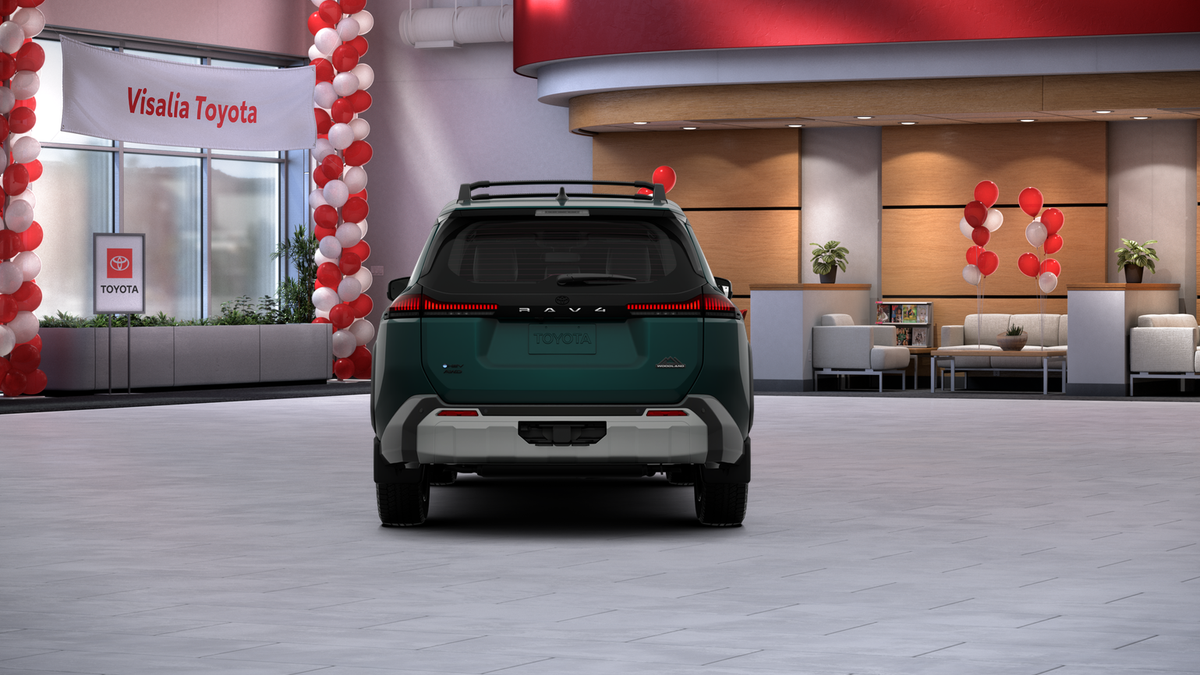

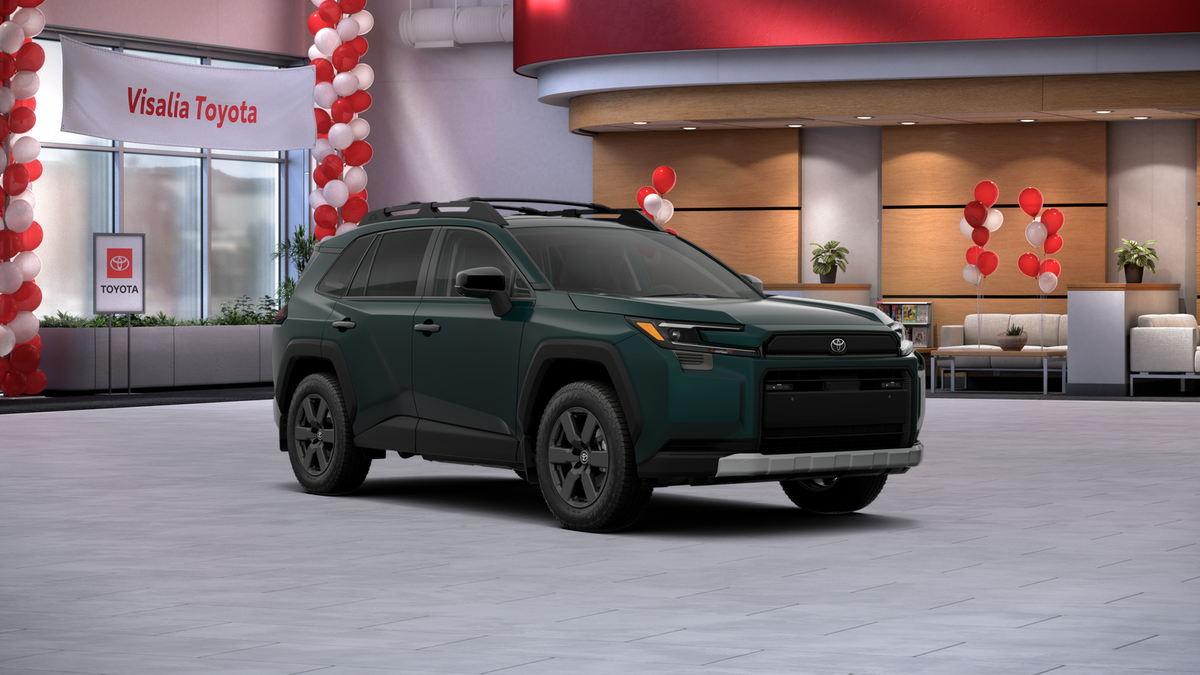

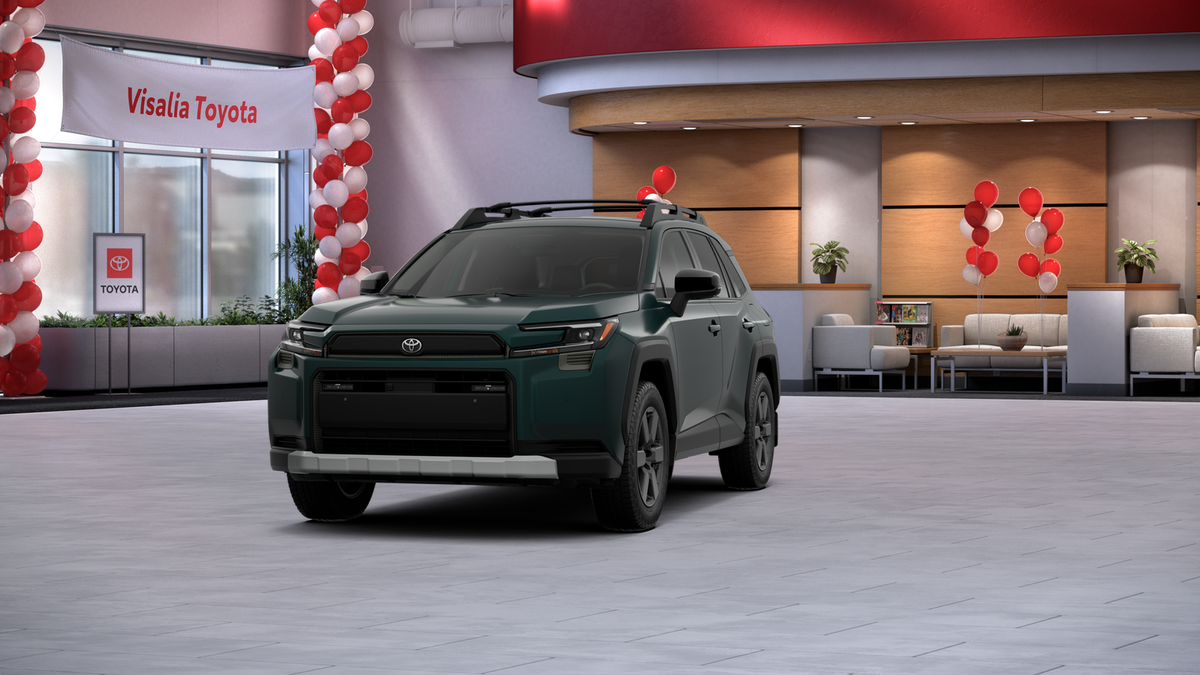

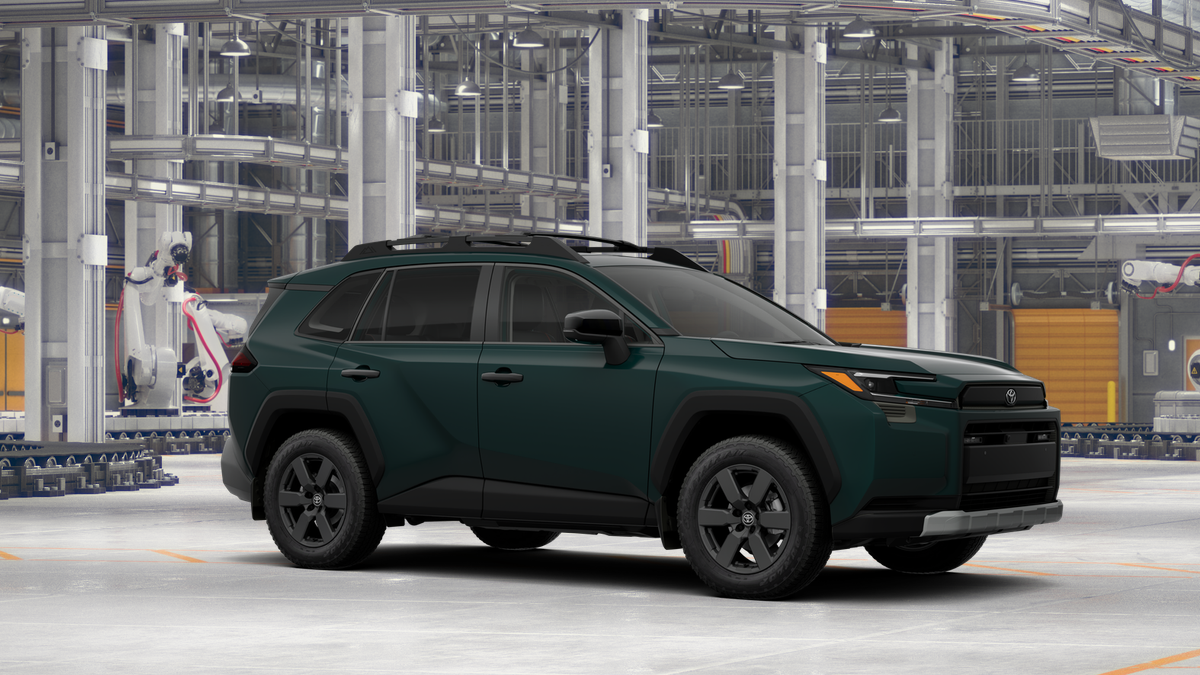

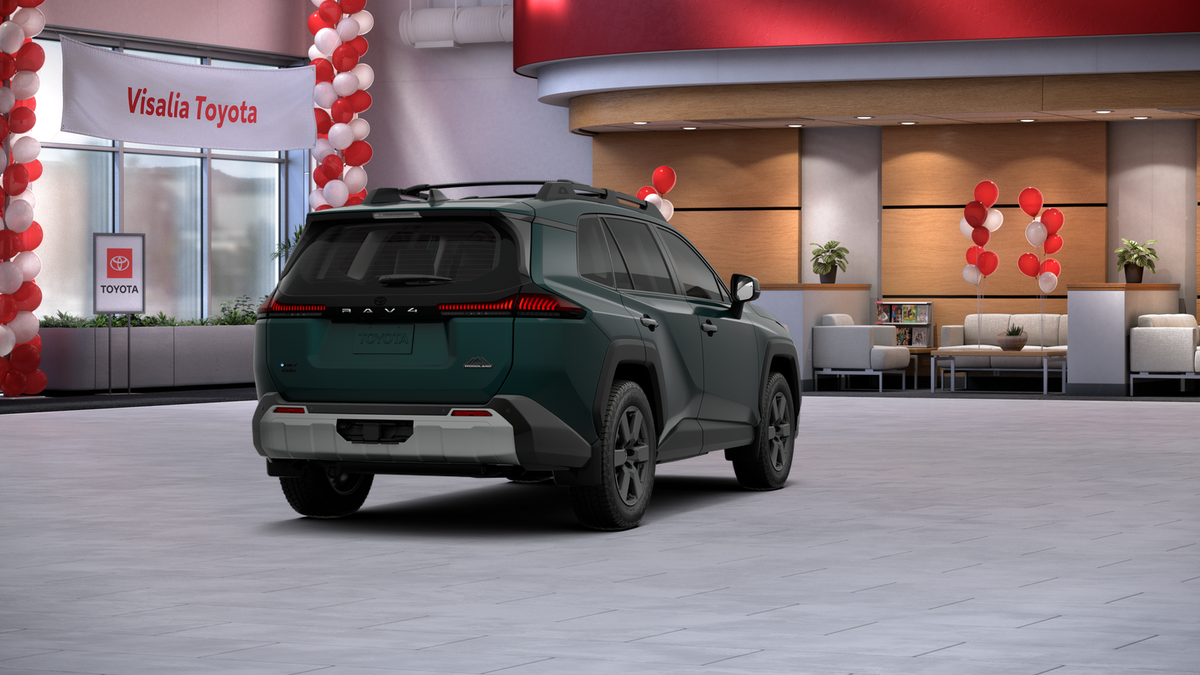

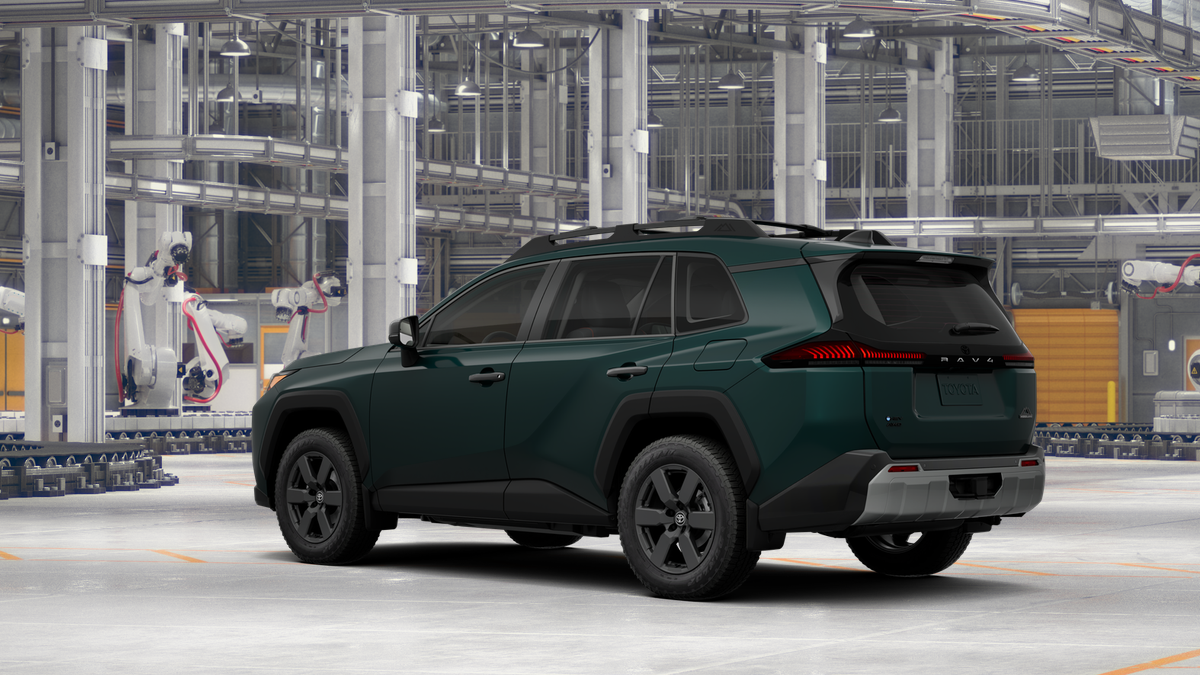

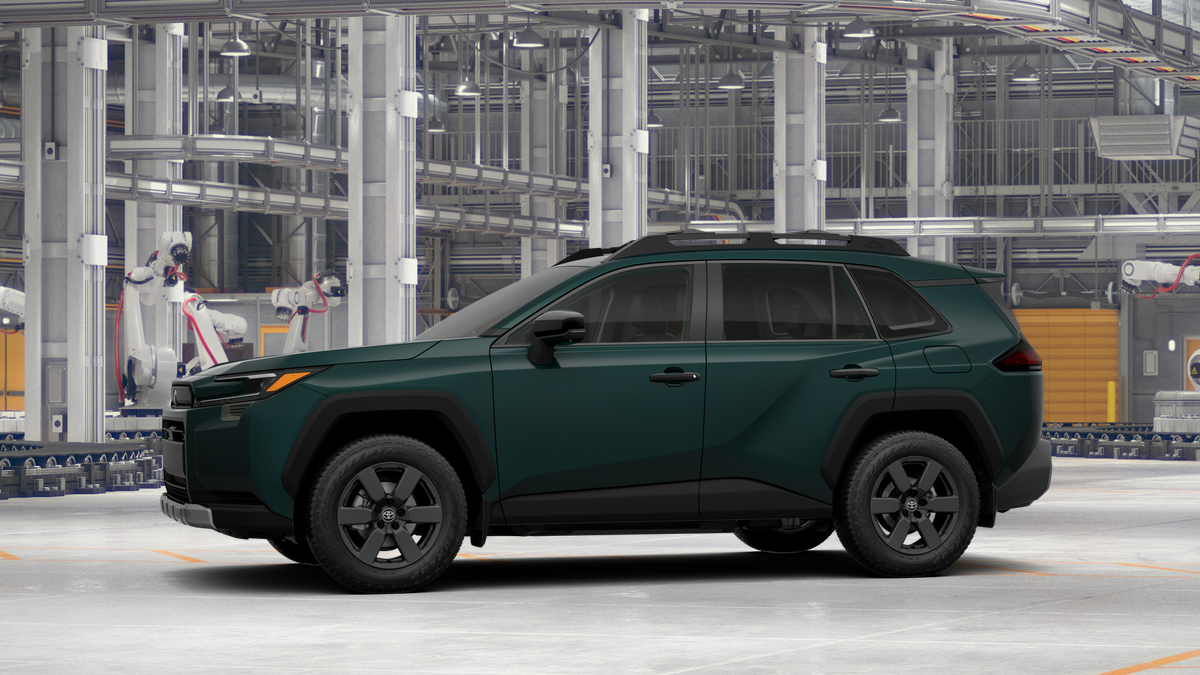

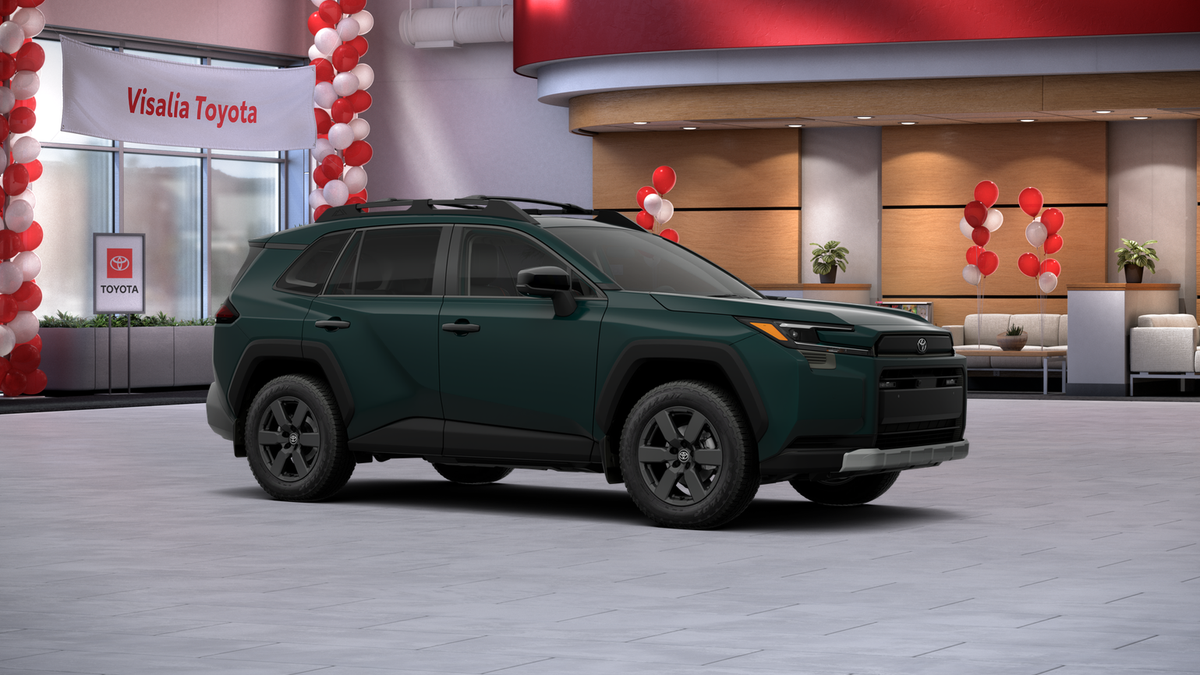

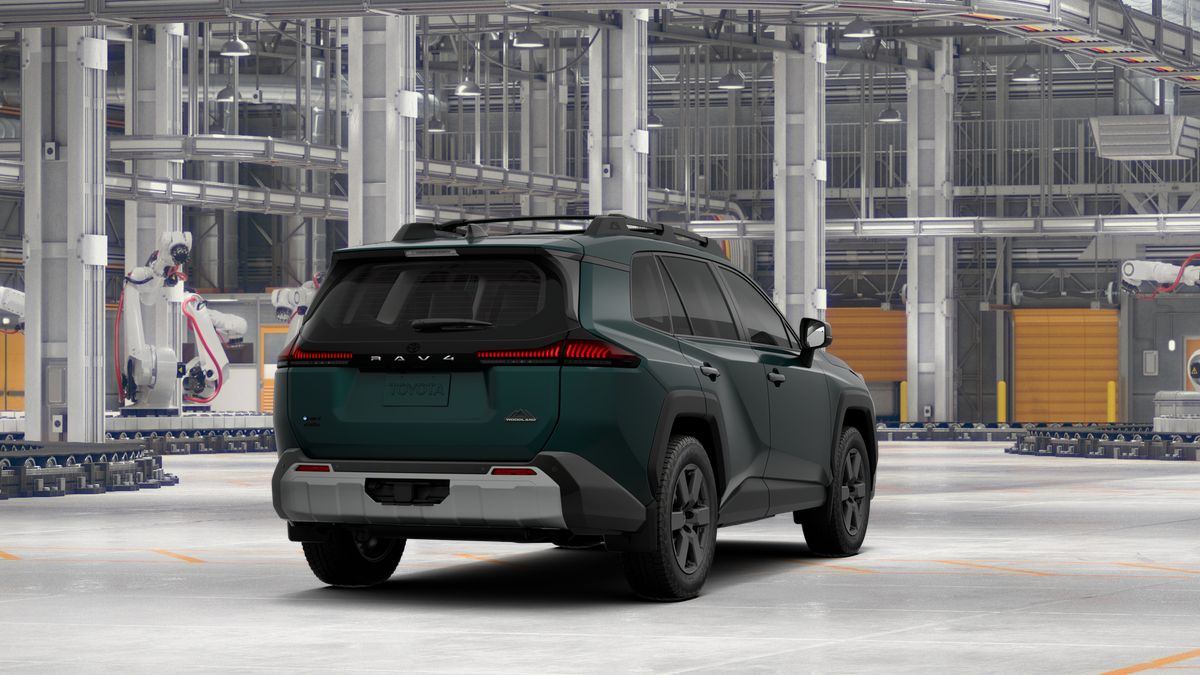

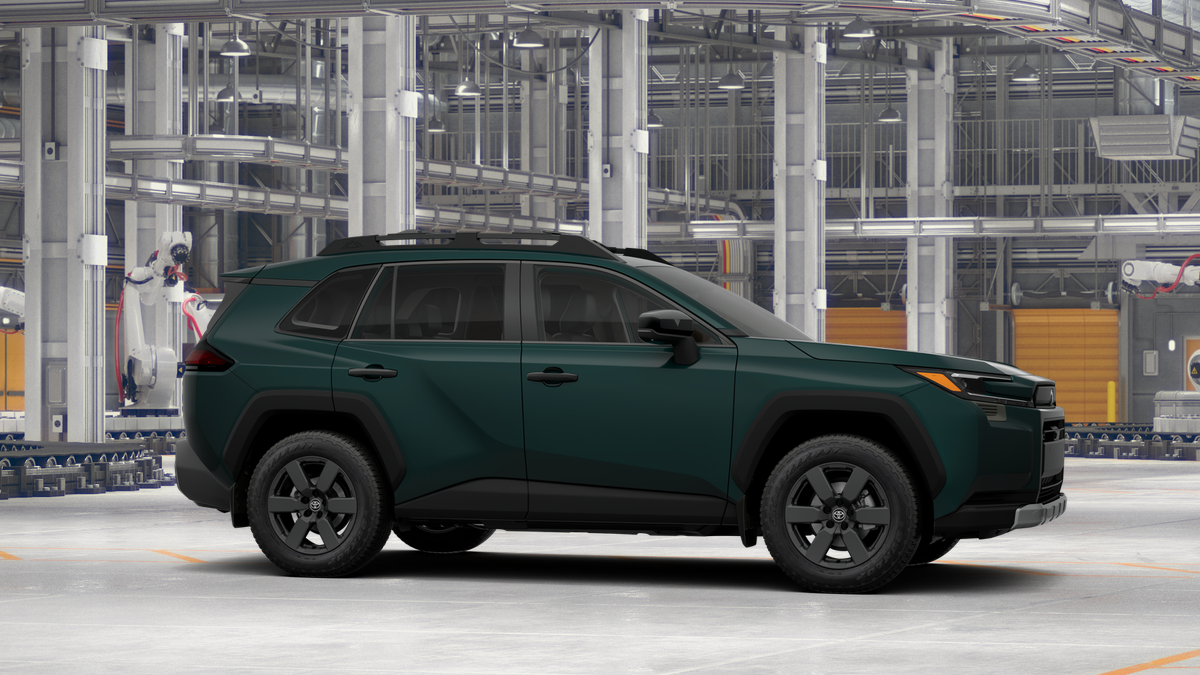

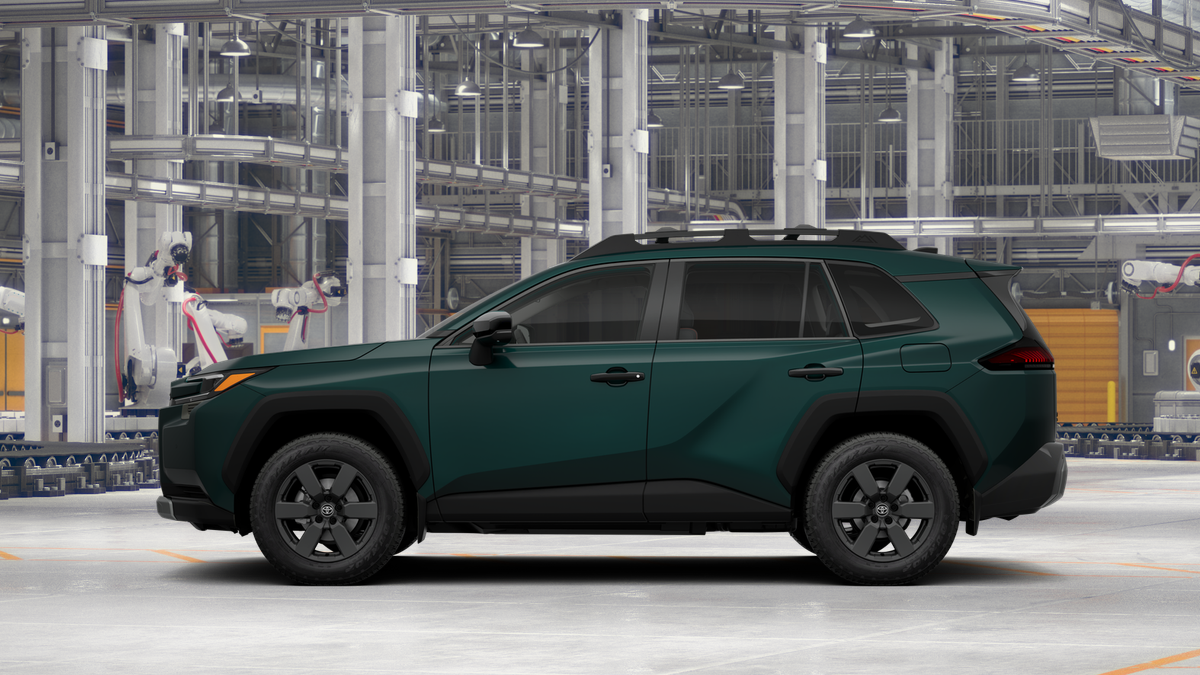

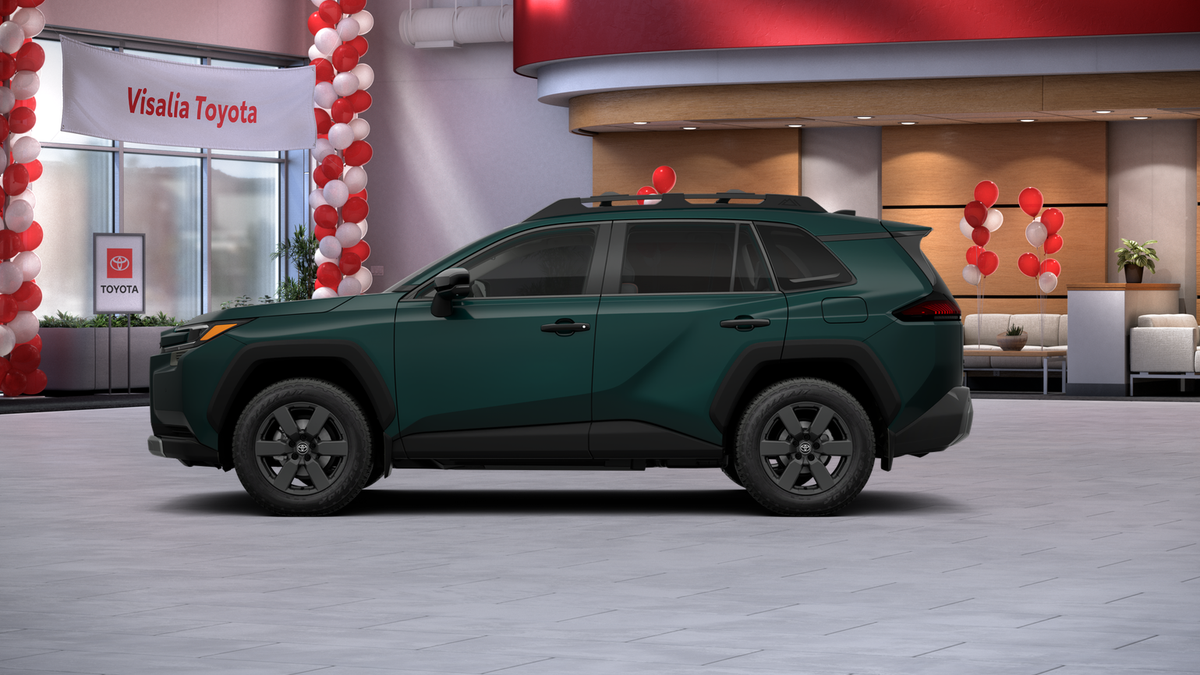

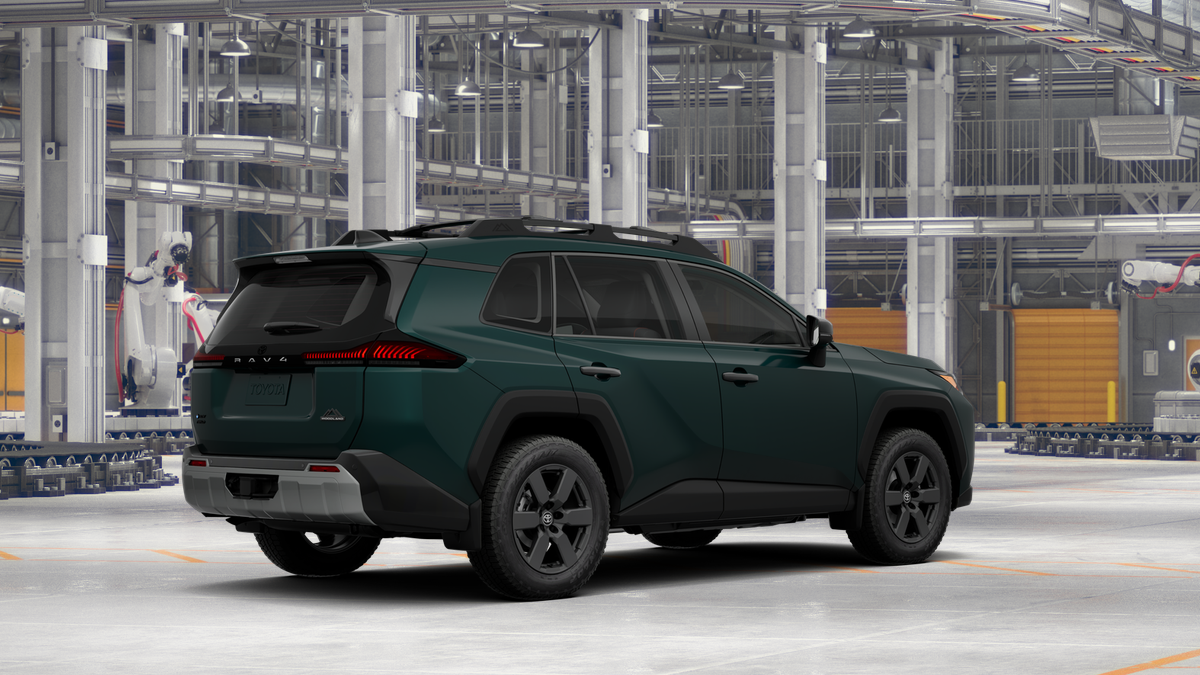

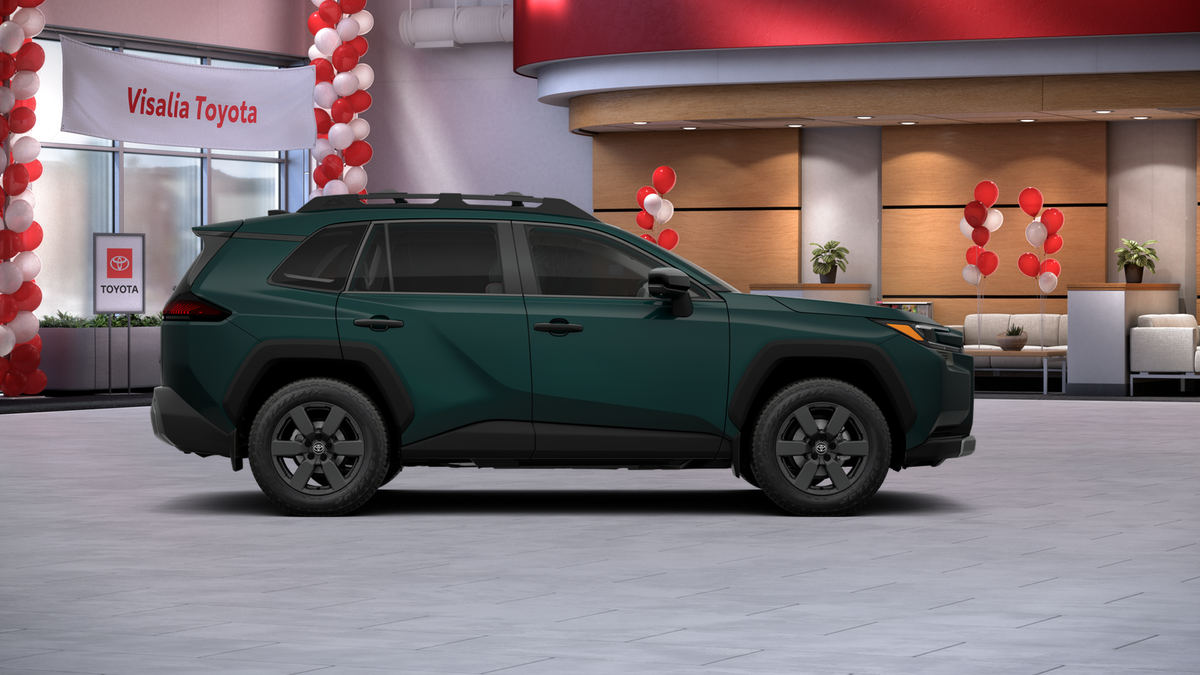

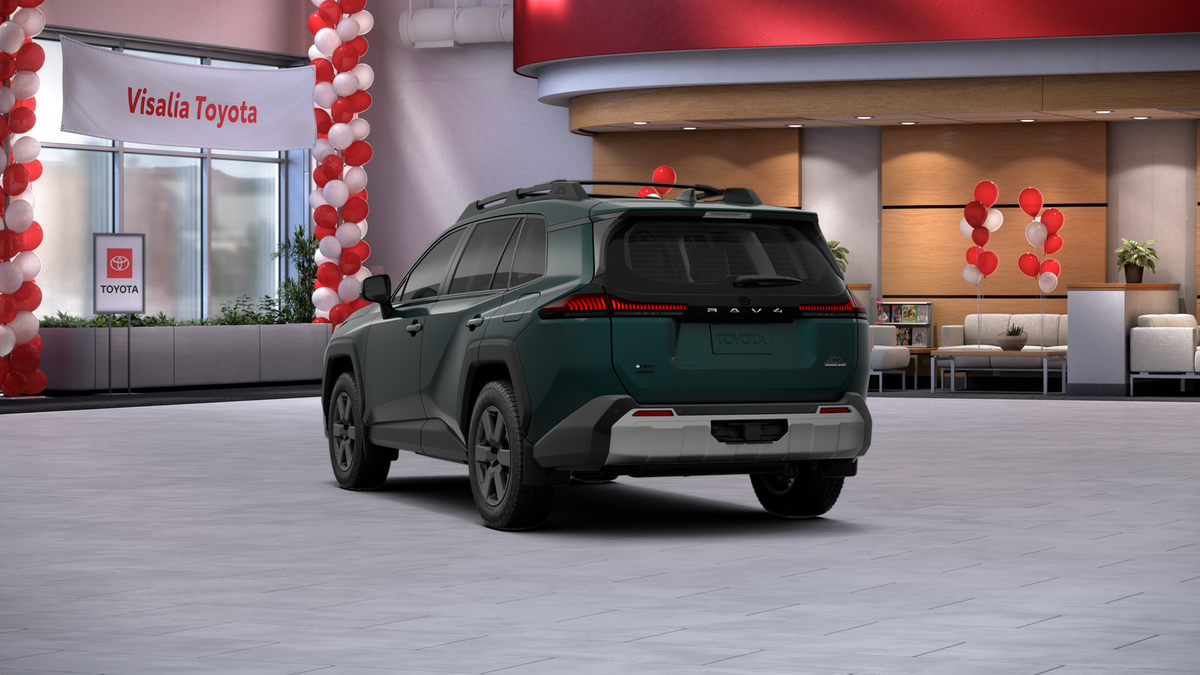

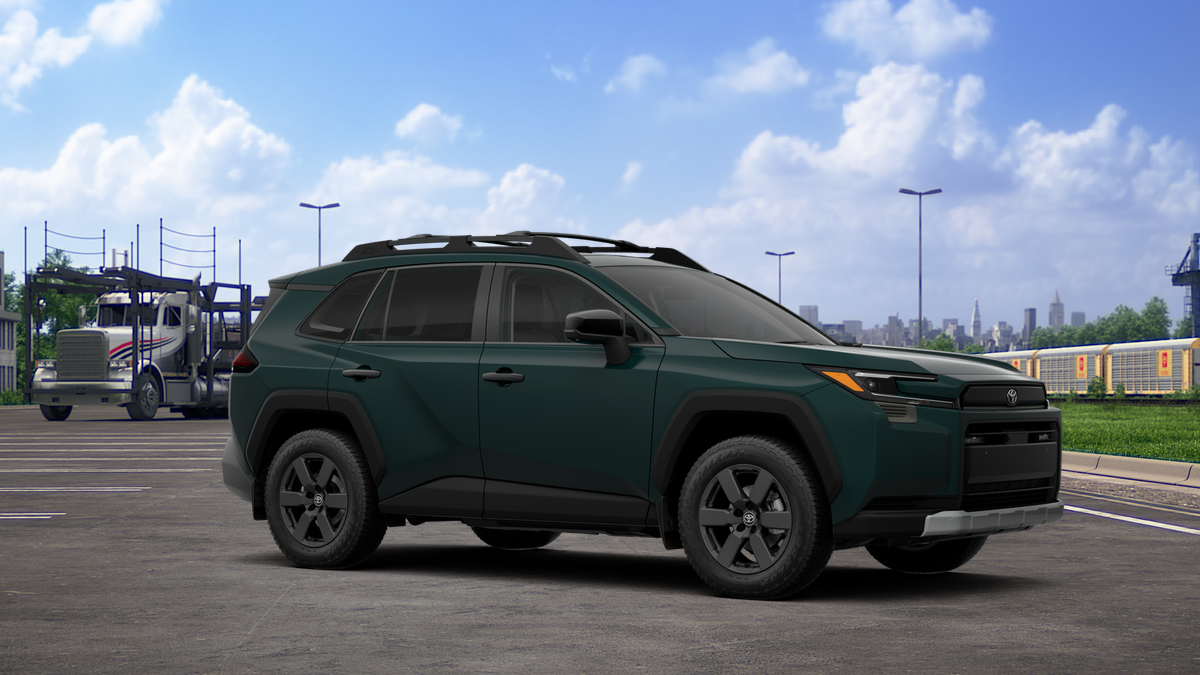

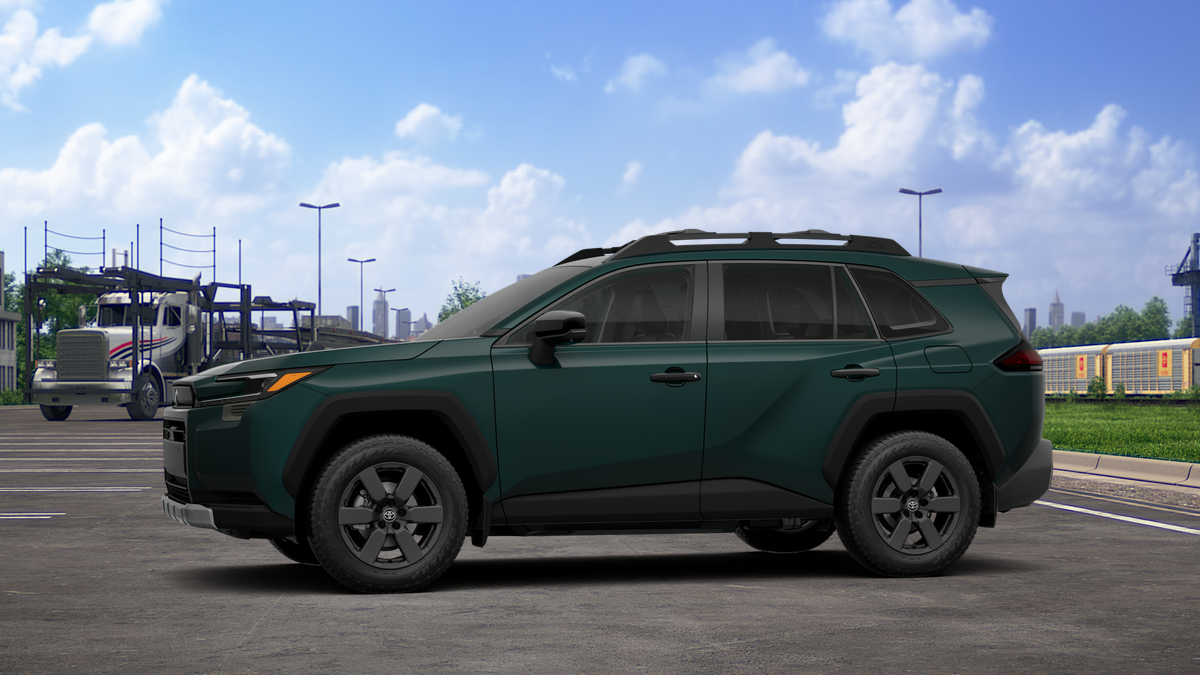

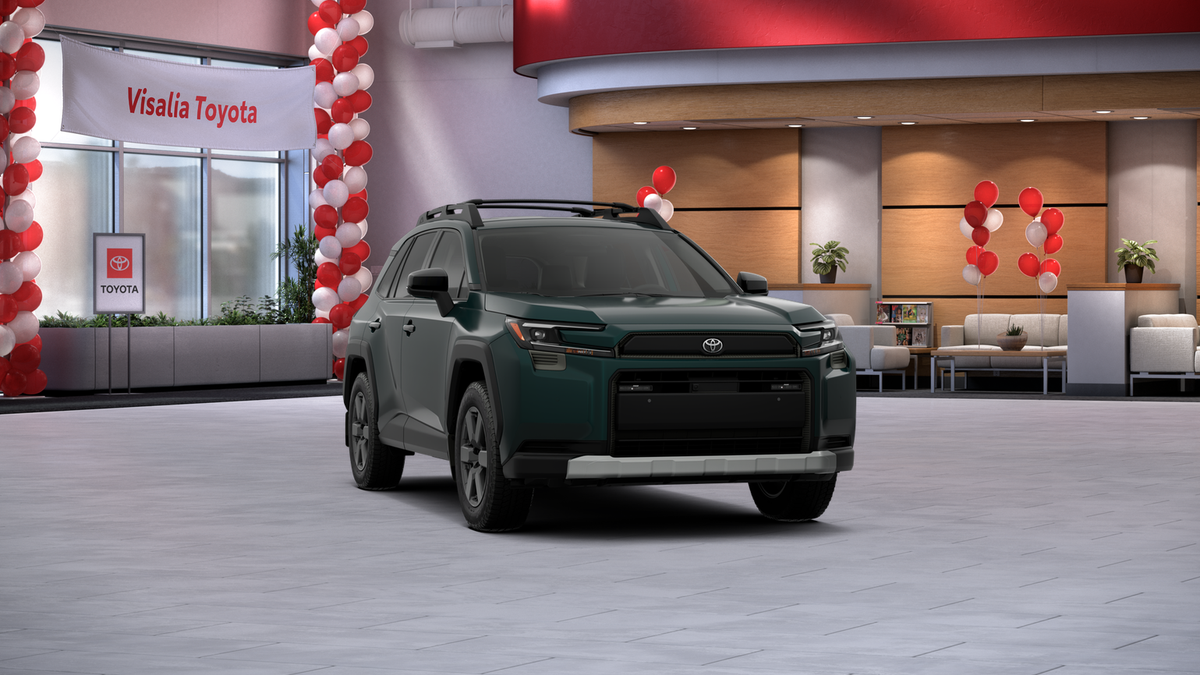

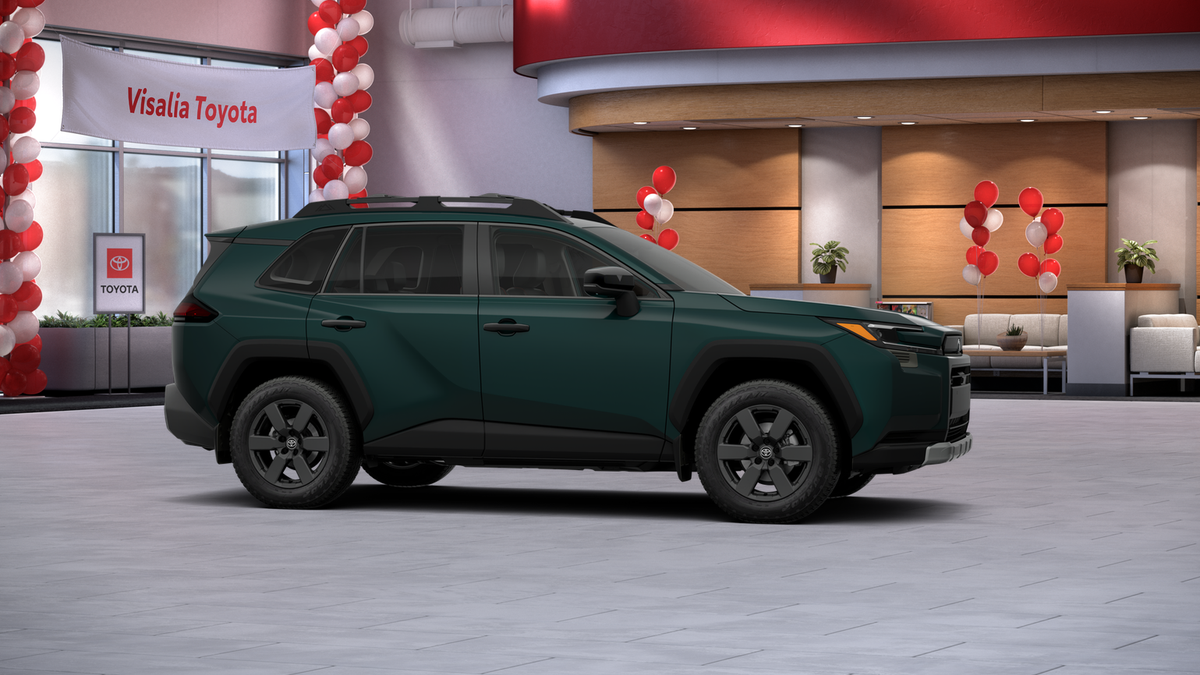

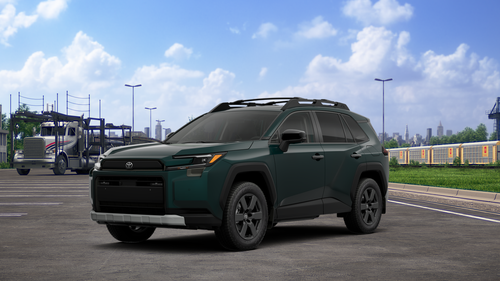

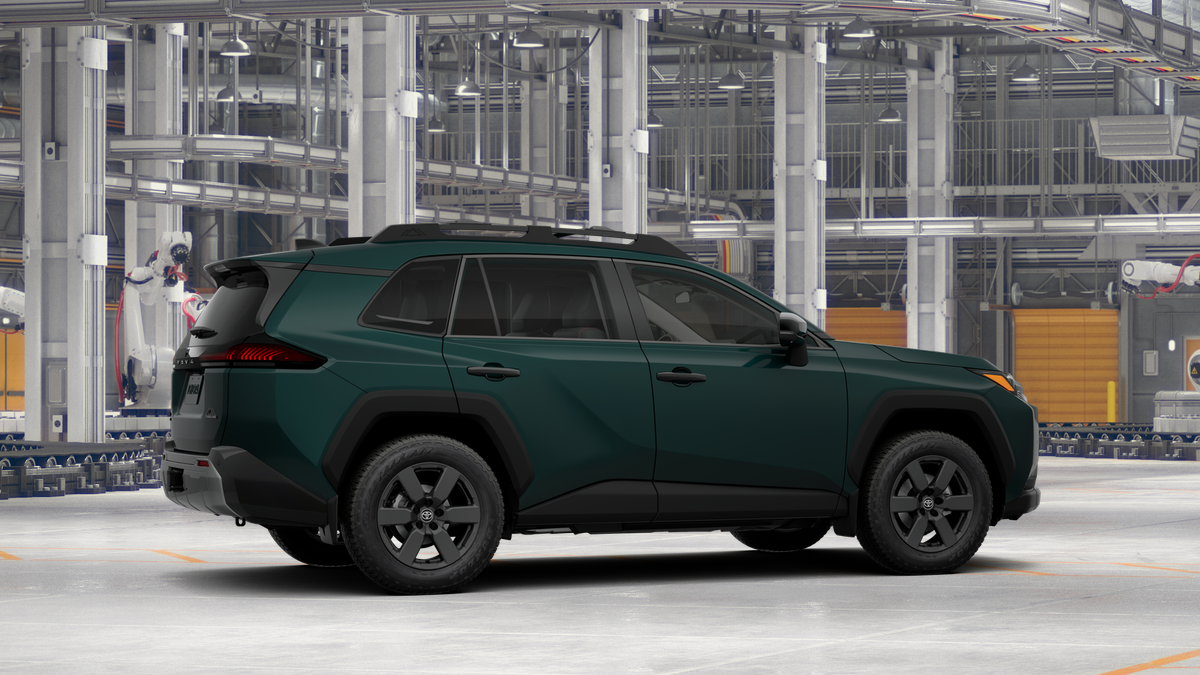

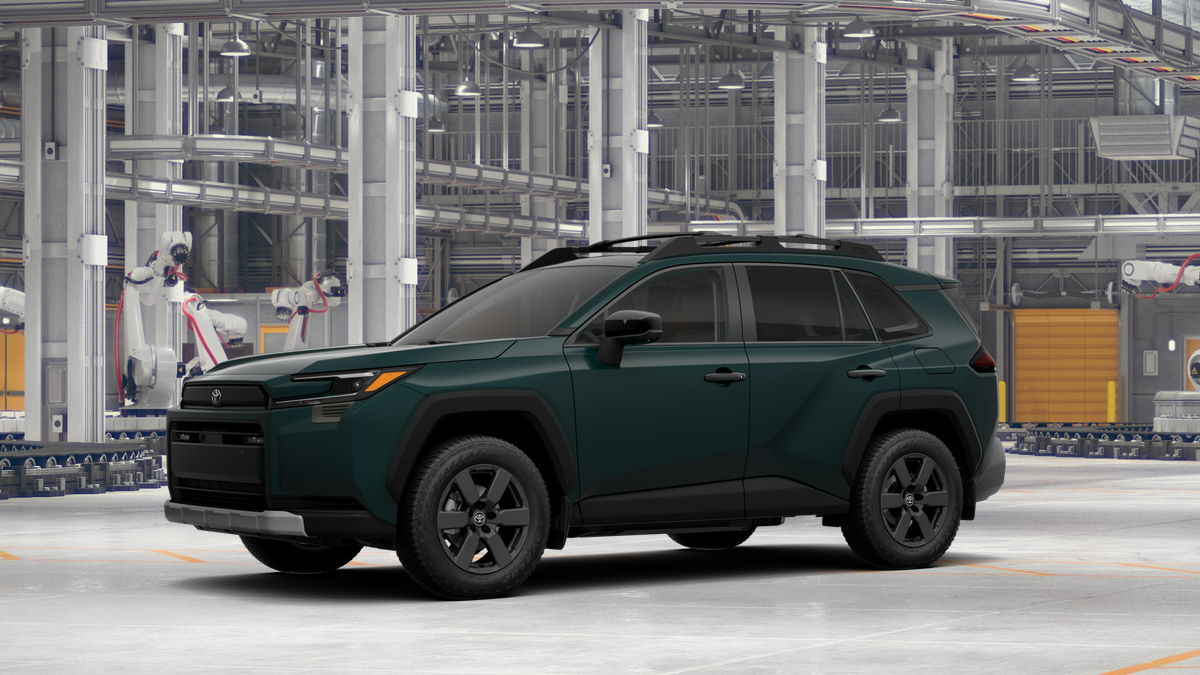

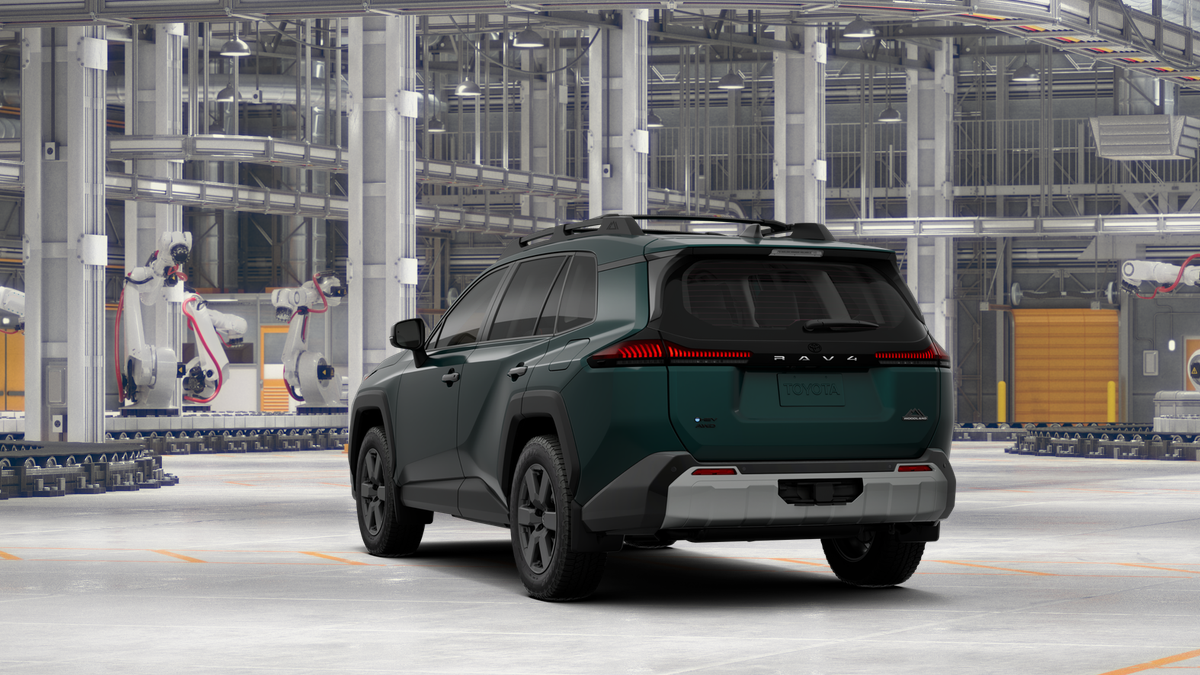

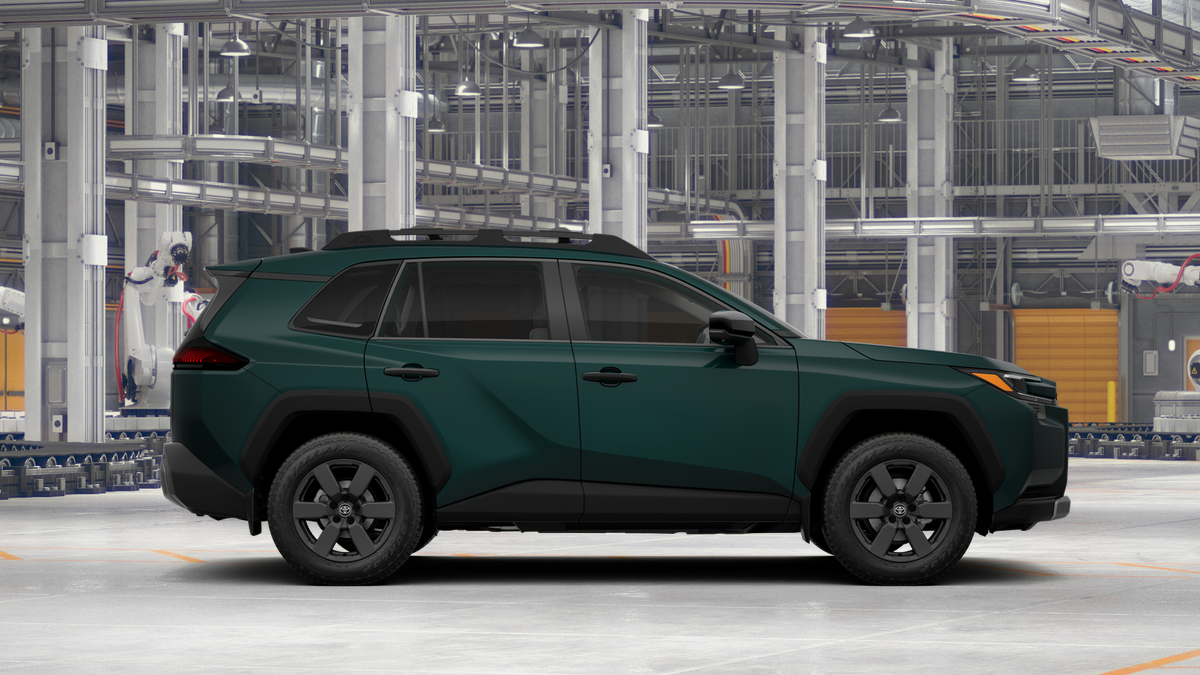

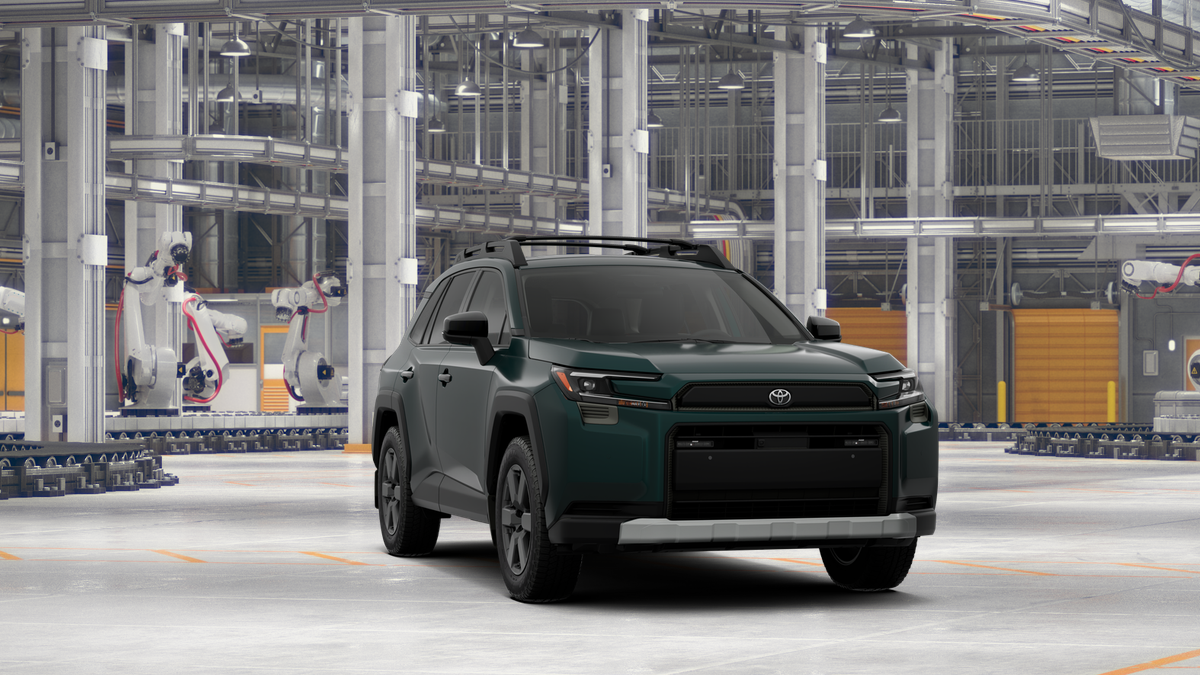

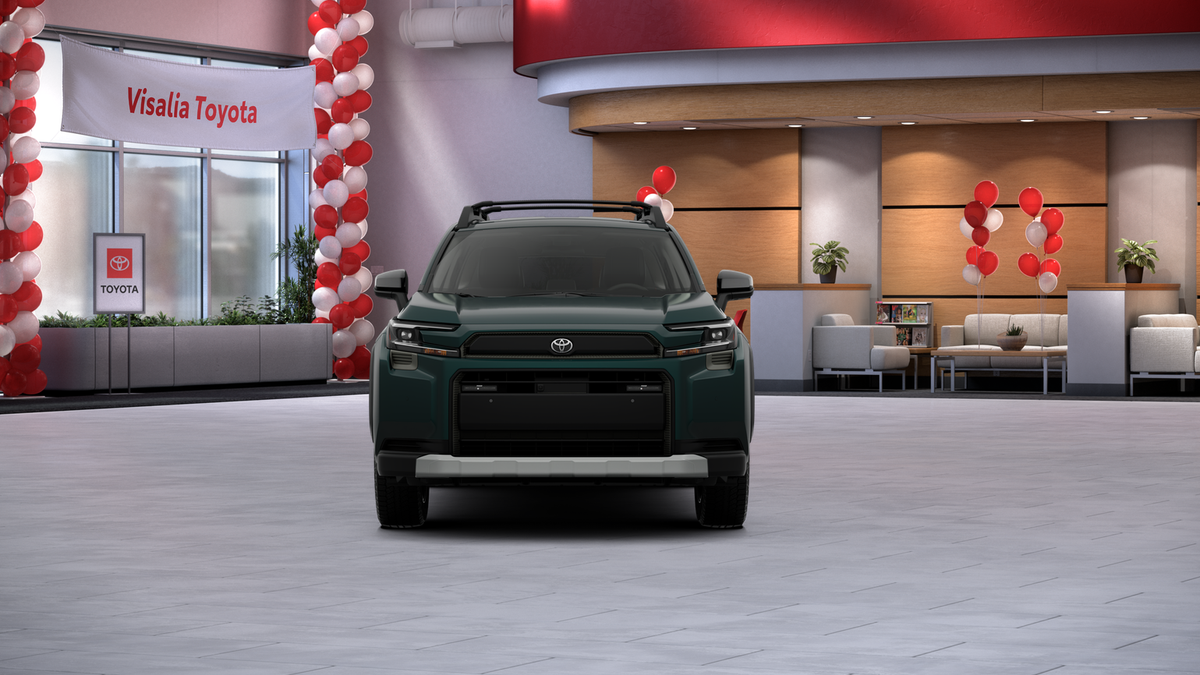

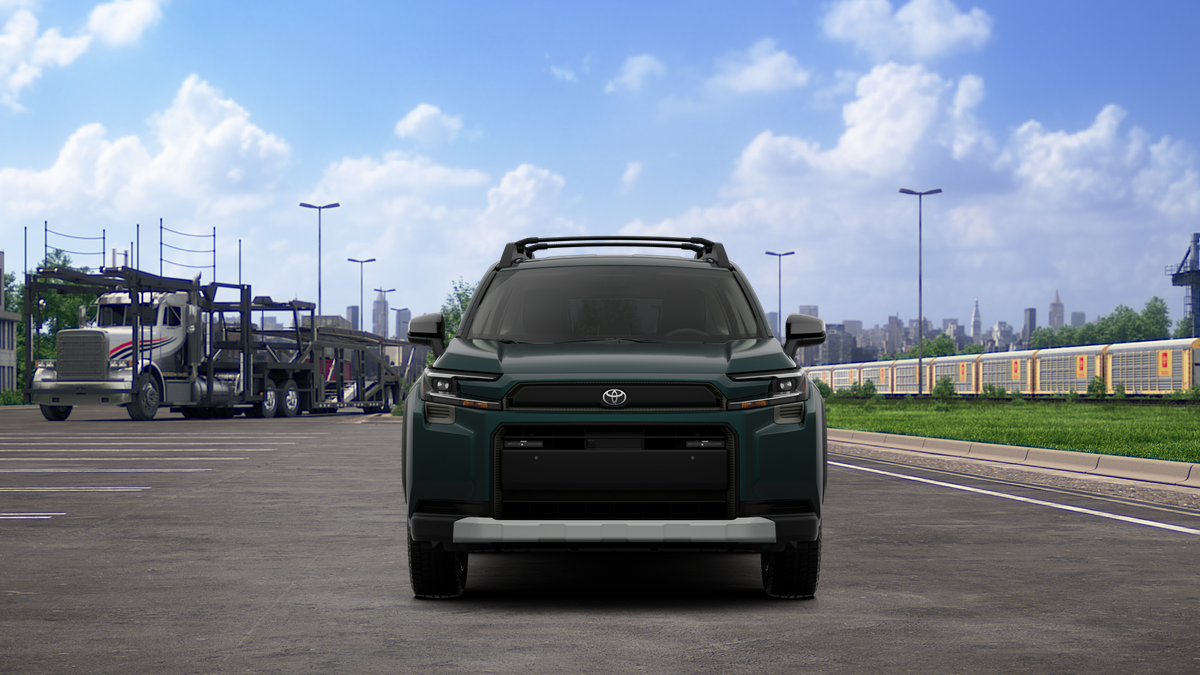

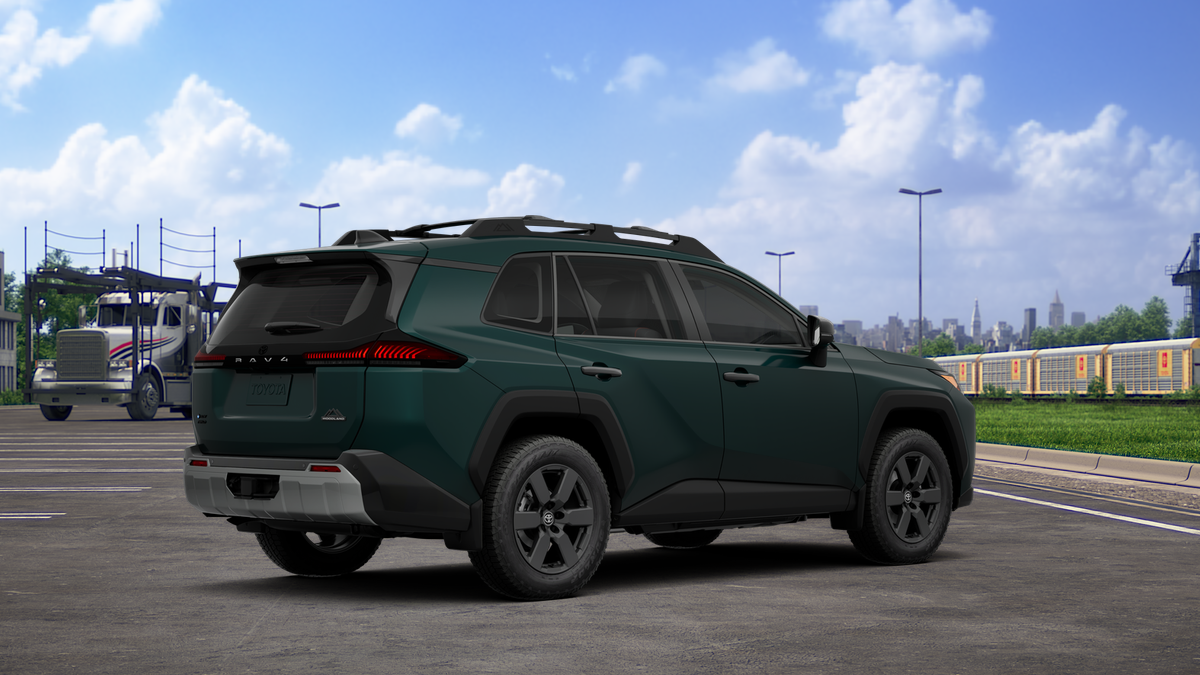

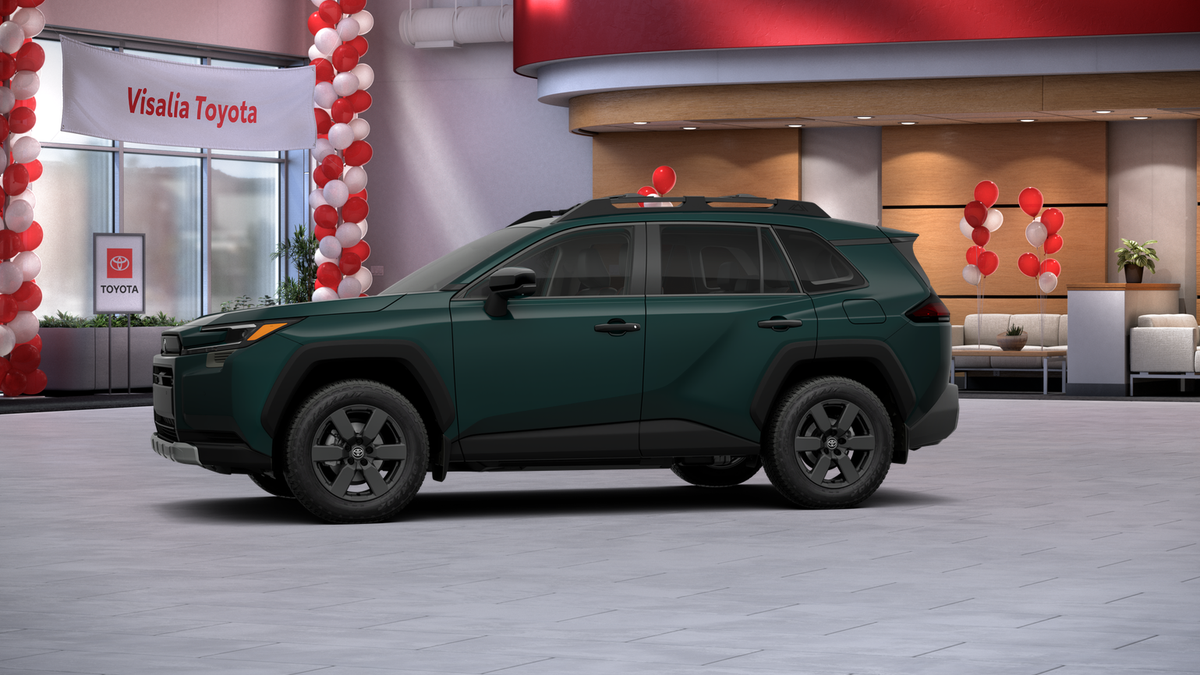

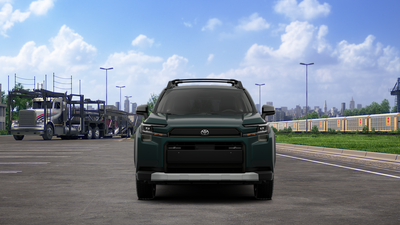

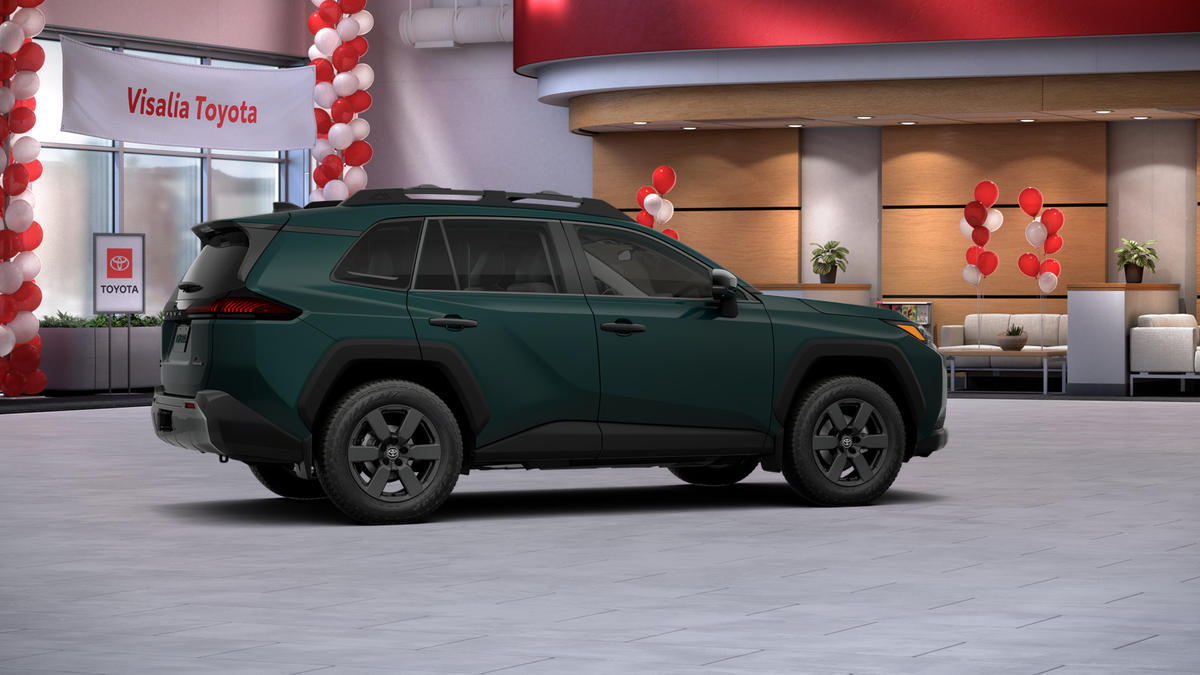

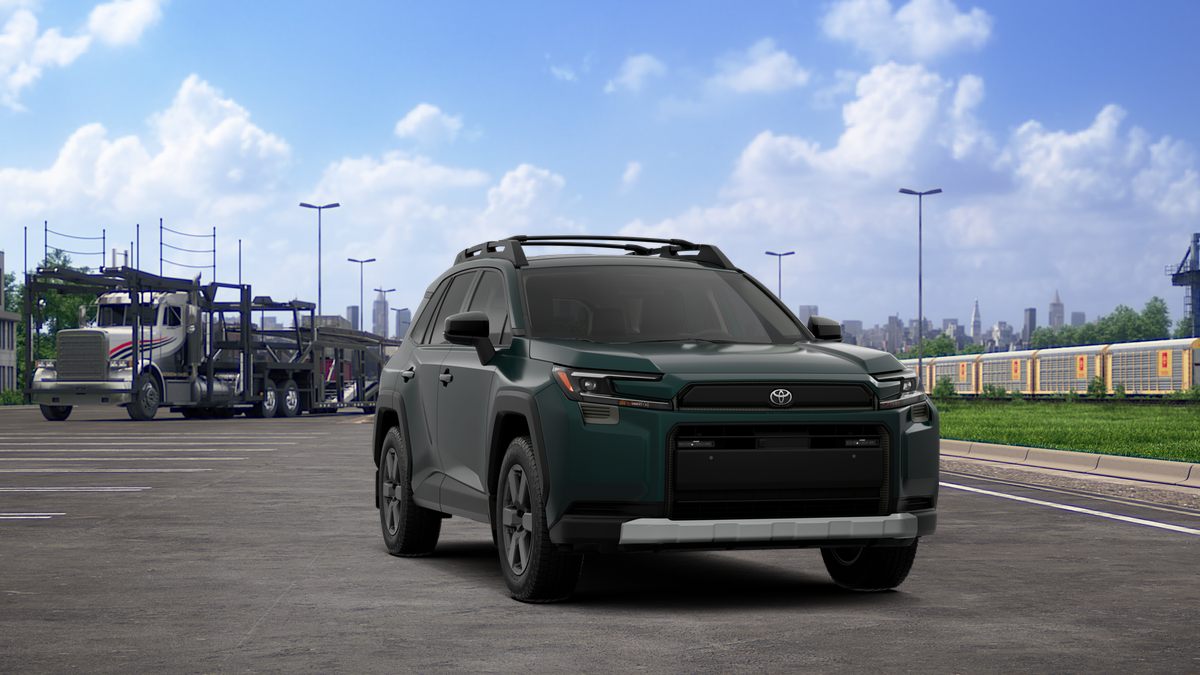

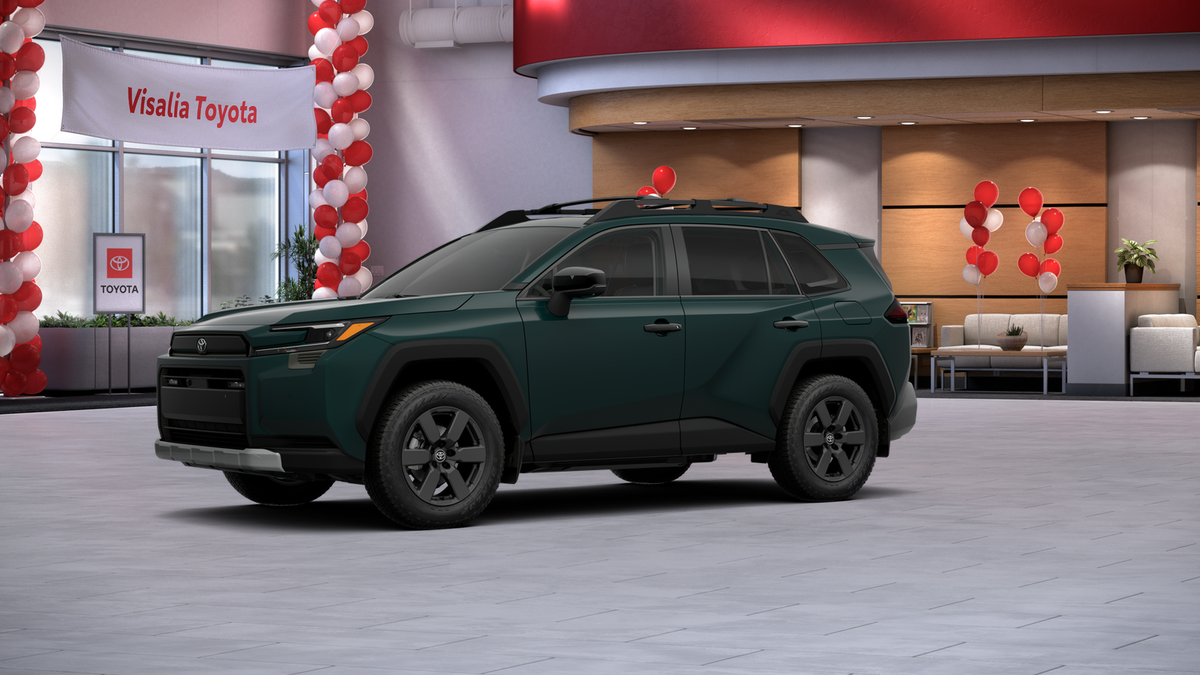

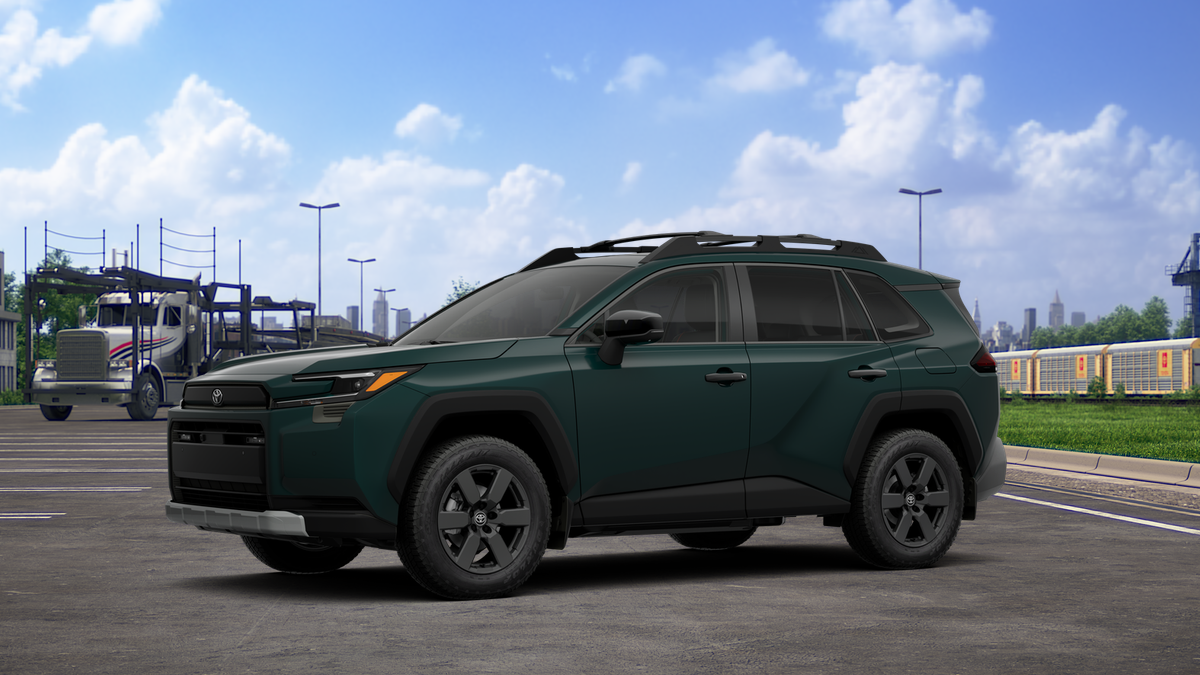

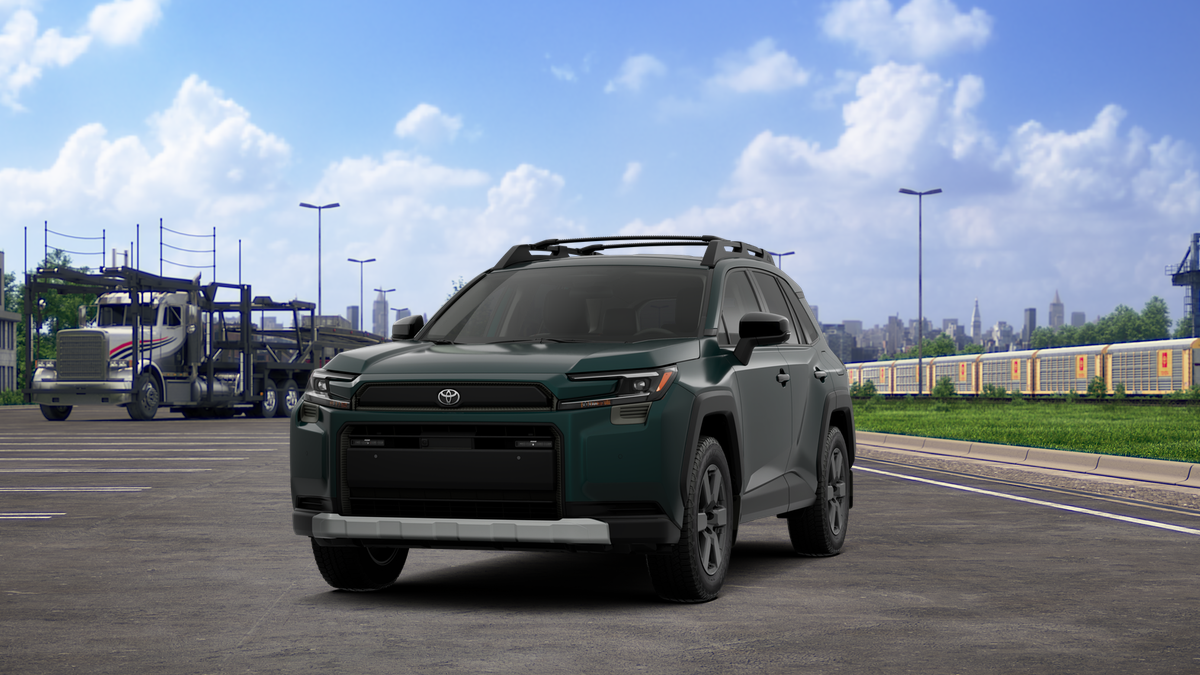

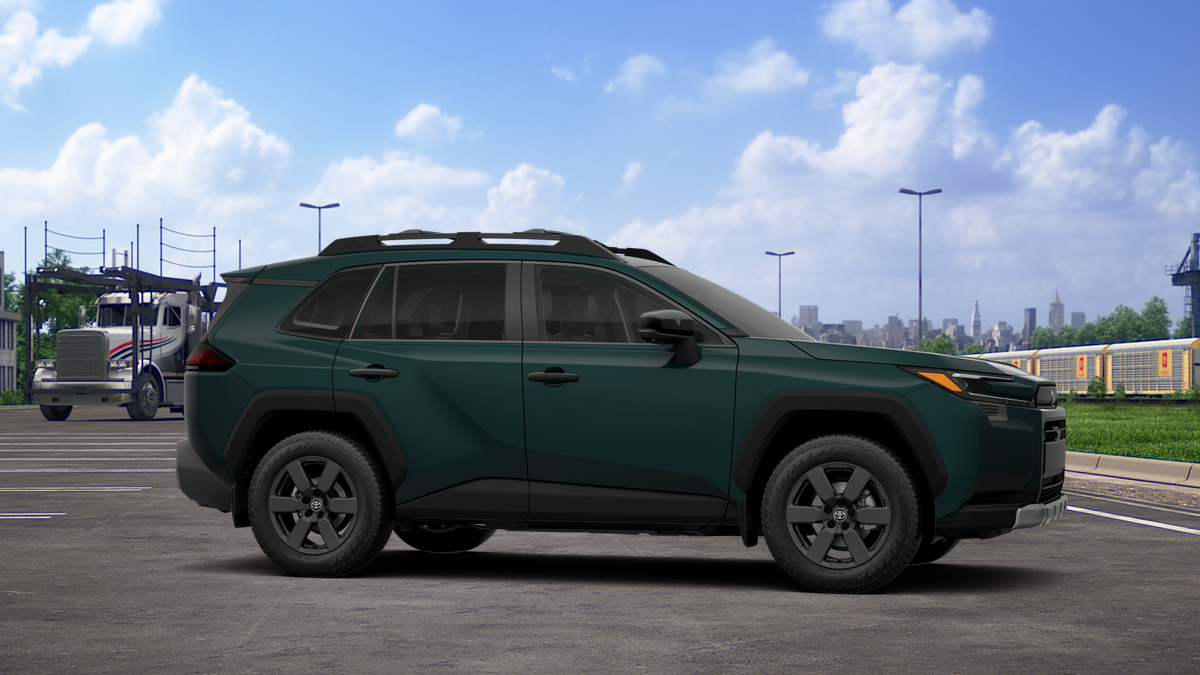

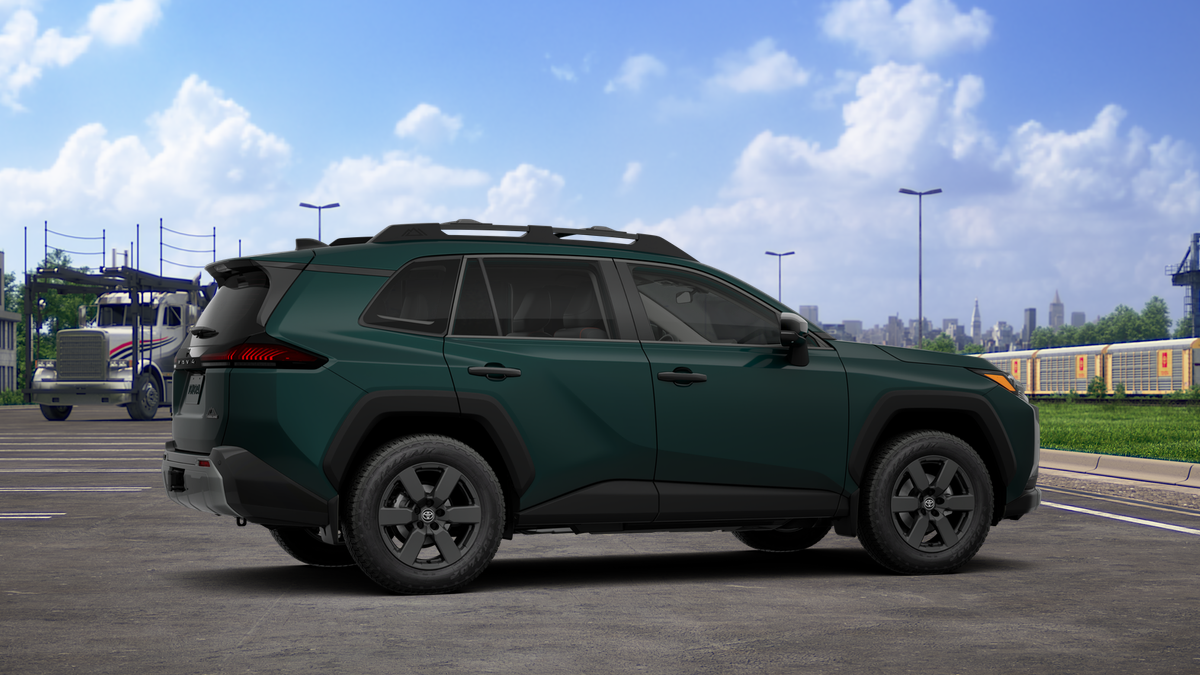

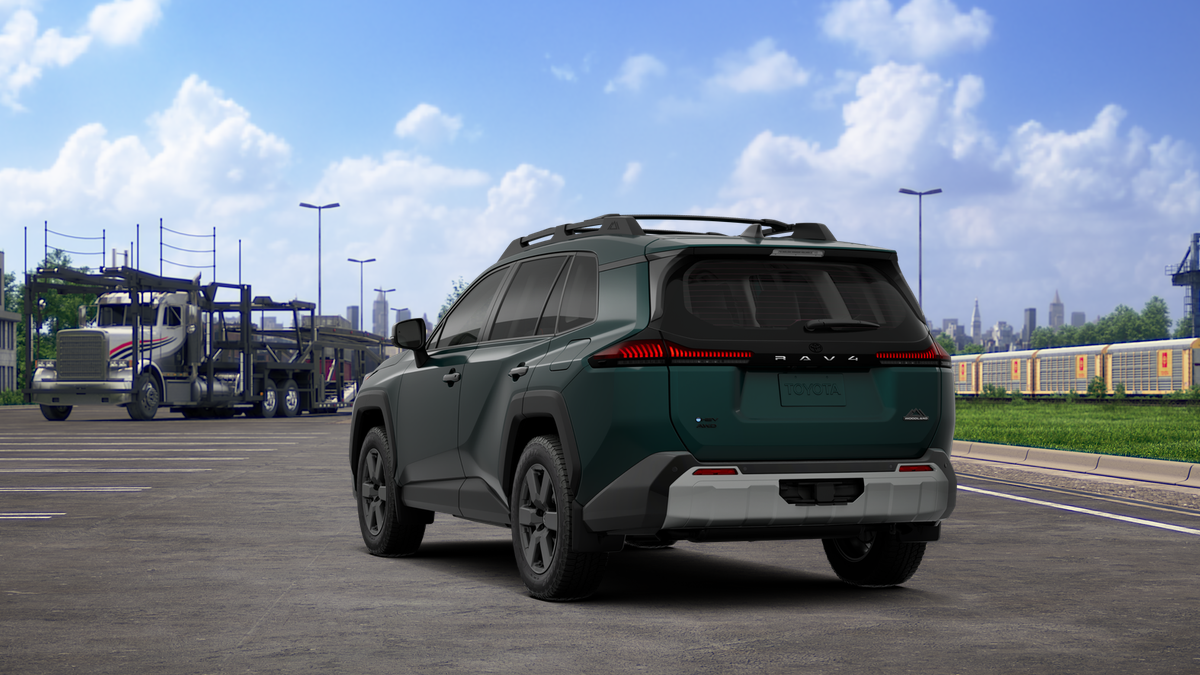

• Vehicle Name: Toyota RAV4
• Body Style: Sport Utility
